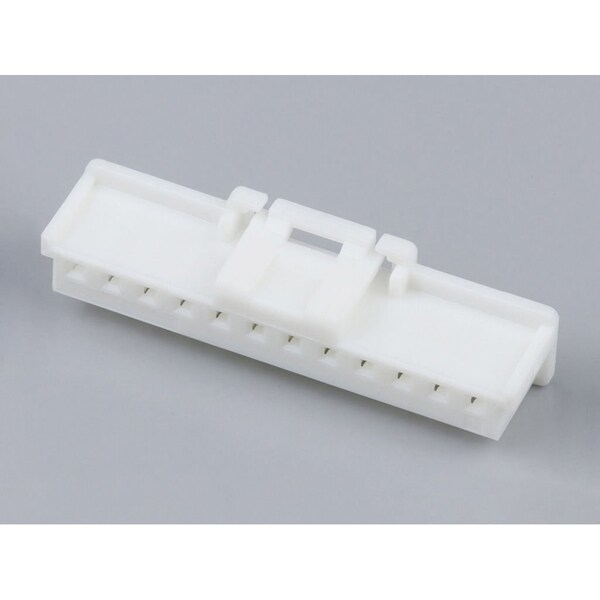

Board Connector, 12 Contact(S), 1 Row(S), Female, 0.079 Inch Pitch, Crimp Terminal, Locking,
Mfr # 5023511200
Zoro # G705893539
product price: $0.33
/eaSold in multiples of 300 for $99.00
Key Features
Max. Temp.
105°C
Application
Automotive, Signal, Wire-to-Board
Series
502351
Connector Type
Receptacle
Hole Center to Center
2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5023511200
Zoro #
G705893539
UPC #
-
Country of Origin
China
Details
Max. Temp.
105°C
Application
Automotive, Signal, Wire-to-Board
Series
502351
Connector Type
Receptacle
Hole Center to Center
2 mm
Color
Natural
Number of Rows
1
Current Rating
3 A
Number of Contacts
12
Lock to Mating Part
Yes
Glow-Wire Capable
No
Product Name
DuraClik
Polarized to Mating Part
Yes
Current - Maximum per Contact
3.0A
Temperature Range - Operating
-40° to +105°C
Circuits (maximum)
12
Pitch - Mating Interface
2.00mm
Keying to Mating Part
Yes
Description
Board Connector, 12 Contact(S), 1 Row(S), Female, 0.079 Inch Pitch, Crimp Terminal, Locking, Receptacle
