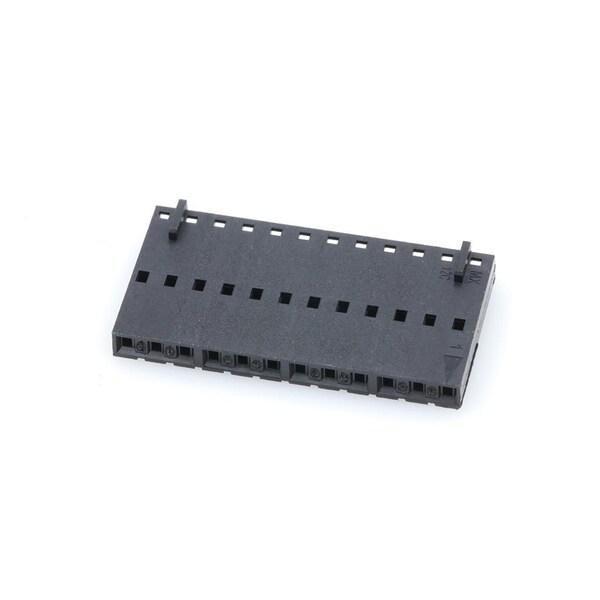

Board Connector, 12 Contact(S), 1 Row(S), Male Or Female, Straight, 0.1 Inch Pitch, Crimp Terminal,
- Mfr # 50579312
- Zoro # G505892633
product price:Â
$
0.61
/ea
Sold in multiples of 170 for
$103.70
Key Features
Number of Contacts
12
Max. Temp.
105°C
Application
Signal, Wire-to-Board
Series
70066
Standards
CSA Certified; UL E29179
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50579312
- Zoro #
- G505892633
- UPC #
- -
- Country of Origin
- United States
Details
- Number of Contacts
- 12
- Max. Temp.
- 105°C
- Application
- Signal, Wire-to-Board
- Series
- 70066
- Standards
- CSA Certified; UL E29179
- Color
- Black
- Hole Center to Center
- 2.54 mm
- Connector Type
- Receptacle
- Material
- Polyester Alloy
- Flammability Rating
- UL 94V-0
- Number of Rows
- 1
- Glow-Wire Capable
- No
- Product Name
- SL
- Lock to Mating Part
- No
- CSA
- LR19980
- Pitch - Mating Interface
- 2.54mm
- Circuits (maximum)
- 12
- Material - Resin
- Polyester Alloy
- UL
- E29179
- Keying to Mating Part
- Yes
- Flammability
- 94V-0
- Temperature Range - Operating
- -40° to +105°C
- Stackable
- Yes
Description
Board Connector, 12 Contact(S), 1 Row(S), Male Or Female, Straight, 0.1 Inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug And Receptacle
