  11. Board Connector, 12 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal,

This item is Discontinued.

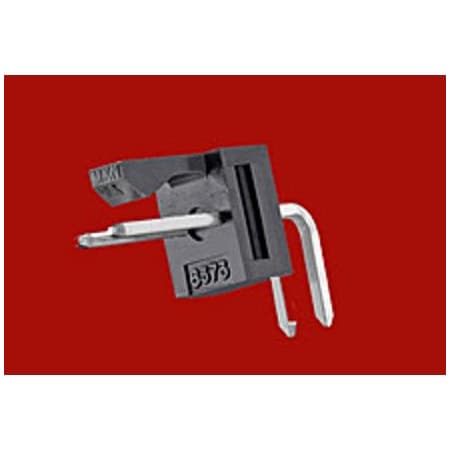

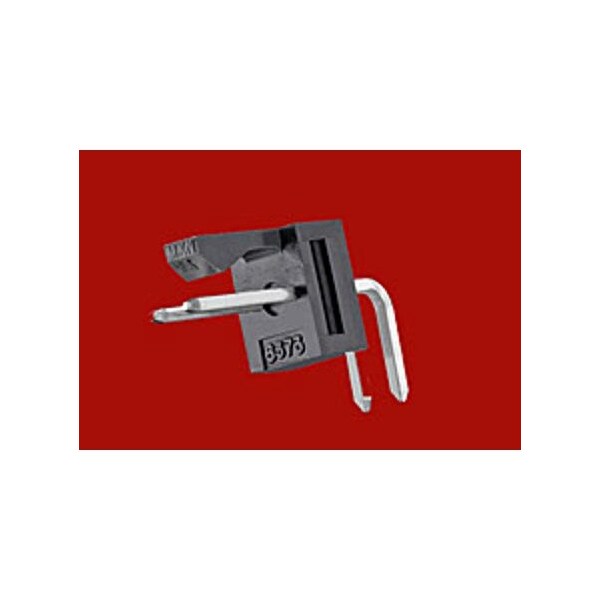

Molex Board Connector, 12 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, 1718570012

Board Connector, 12 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, (Discontinued)

  • Mfr # 1718570012
  • Zoro # G505790274
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1718570012
Zoro #
G505790274
UPC #
-
Country of Origin
Mexico

Details

Color
Black
Max. Voltage
500V
Maximum Voltage
500 V
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-1
Material
Nylon
Terminal Type
Through Hole
Hole Center to Center
2.54 mm
Max. Temp.
260°C
Number of Rows
1
Contact Finish
Tin Plated
Number of Contacts
12
Current Rating
4 A
Features
Surface Mount Compatible
Flammability Rating
UL 94V-1
Terminal Finish
Nickel Plated

Description

Board Connector, 12 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
