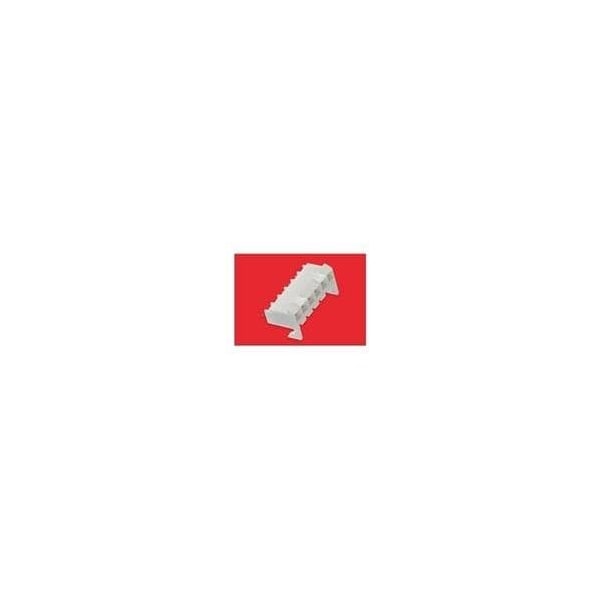

Board Connector, 14 Contact(S), 1 Row(S), Female, Right Angle, 0.156 Inch Pitch, Solder Terminal,
Mfr # 9484149
Zoro # G305784367
product price: $3.75
/ea
Sold in multiples of 21 for $78.75
Key Features
Color
Natural
Max. Voltage
250V
Maximum Voltage
250 V
Current
5 A
Standards
CSA Certified; UL E29179
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
9484149
Zoro #
G305784367
UPC #
-
Country of Origin
India
Dimensions
Contact Plating Thickness
5.08 µm
Details
Color
Natural
Max. Voltage
250V
Maximum Voltage
250 V
Current
5 A
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
235 Degrees C
UL 94 Flammability Rating
V-0
Material
Polyester
Number of Contacts
14
Number of Rows
1
Current Rating
5 A
Hole Center to Center
3.96 mm
Contact Finish
Tin Plated
Terminal Type
Through Hole
Max. Temp.
235°C
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Description
Board Connector, 14 Contact(S), 1 Row(S), Female, Right Angle, 0.156 Inch Pitch, Solder Terminal, Friction Ramp, White Insulator, Plug
