  11. Board Connector, 14 Contact(S), 1 Row(S), Female, Right Angle, Surface Mount Terminal

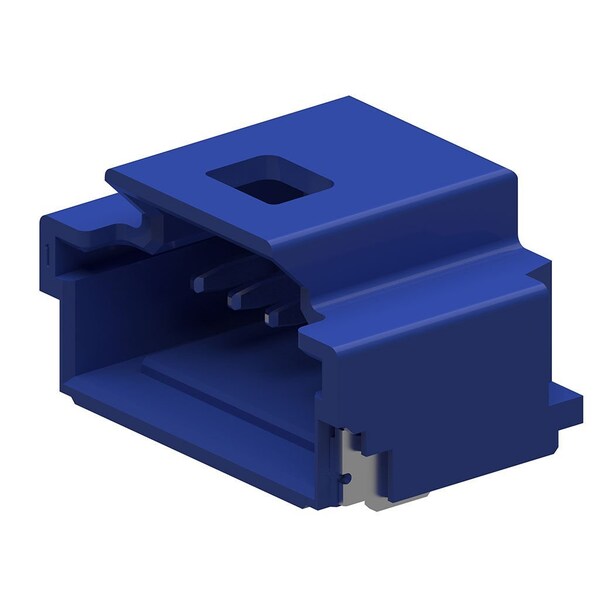

Molex Board Connector, 14 Contact(S), 1 Row(S), Female, Right Angle, Surface Mount Terminal 5015681447 - main

Board Connector, 14 Contact(S), 1 Row(S), Female, Right Angle, Surface Mount Terminal

  • Mfr # 5015681447

  • Zoro # G405892863

product price: $0.39
/ea
Sold in multiples of 198 for $77.22

Key Features

Application
Signal, Wire-to-Board
Series
501568
Glow-Wire Capable
No
Product Name
Pico-Clasp
Keying to Mating Part
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5015681447
Zoro #
G405892863
UPC #
-
Country of Origin
Japan

Details

Application
Signal, Wire-to-Board
Series
501568
Glow-Wire Capable
No
Product Name
Pico-Clasp
Keying to Mating Part
None
Breakaway
No
Polarized to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Number of Rows
1
Termination Interface Style
Surface Mount
Material - Plating Termination
Tin
First Mate / Last Break
No
Lock to Mating Part
Yes
Current - Maximum per Contact
1.0A
UL
E29179
Polarized to PCB
No
Component Type
PCB Header
Stackable
No
Material - Metal
Phosphor Bronze
PCB Locator
No
Pitch - Mating Interface
1.00mm
Voltage - Maximum
100V AC (RMS)/DC
PCB Retention
Yes
Material - Resin
Nylon
Circuits (Loaded)
14
Shrouded
Fully
Durability (mating cycles max)
30
Orientation
Right Angle
Guide to Mating Part
No
Material - Plating Mating
Tin
Color - Resin
Blue
