  11. Board Connector, 15 Contact(S), 1 Row(S), Female, Straight, Surface Mount Terminal

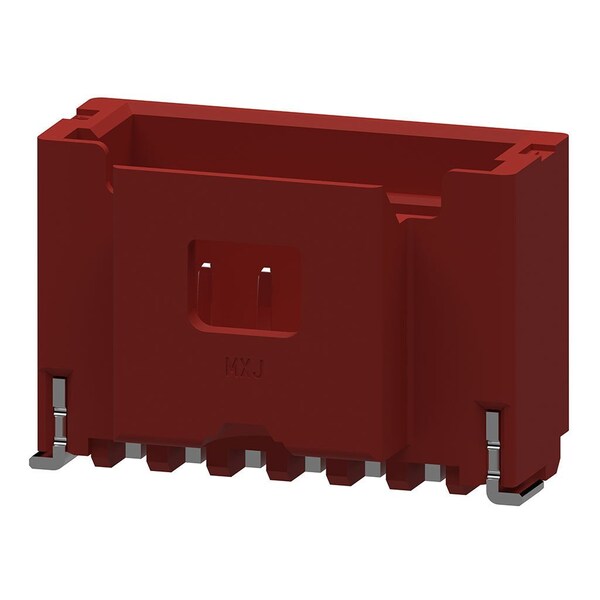

Molex Board Connector, 15 Contact(S), 1 Row(S), Female, Straight, Surface Mount Terminal 5013311527 - main

Board Connector, 15 Contact(S), 1 Row(S), Female, Straight, Surface Mount Terminal

  • Mfr # 5013311527

  • Zoro # G905892585

product price: $0.50
/ea
Sold in multiples of 169 for $84.50

Key Features

Application
Signal, Wire-to-Board
Series
501331
Breakaway
No
Component Type
PCB Header
Lock to Mating Part
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5013311527
Zoro #
G905892585
UPC #
-
Country of Origin
Japan

Details

Application
Signal, Wire-to-Board
Series
501331
Breakaway
No
Component Type
PCB Header
Lock to Mating Part
Yes
Product Name
Pico-Clasp
Glow-Wire Capable
No
UL
E29179
Material - Resin
Nylon
Pitch - Mating Interface
1.00mm
PCB Locator
No
Material - Plating Termination
Tin
Shrouded
Fully
Circuits (Loaded)
15
Polarized to Mating Part
Yes
Durability (mating cycles max)
30
First Mate / Last Break
No
Number of Rows
1
Orientation
Vertical
Material - Metal
Phosphor Bronze
PCB Retention
Yes
Current - Maximum per Contact
1.0A
Polarized to PCB
No
Termination Interface Style
Surface Mount
Voltage - Maximum
100V AC (RMS)/DC
Material - Plating Mating
Tin
Stackable
No
Temperature Range - Operating
-40° to +105°C
Color - Resin
Red
Keying to Mating Part
None
Guide to Mating Part
No
