  11. Board Connector, 2 Contact(S), 1 Row(S), Male, Right Angle, 0.156 Inch Pitch, Solder Terminal,

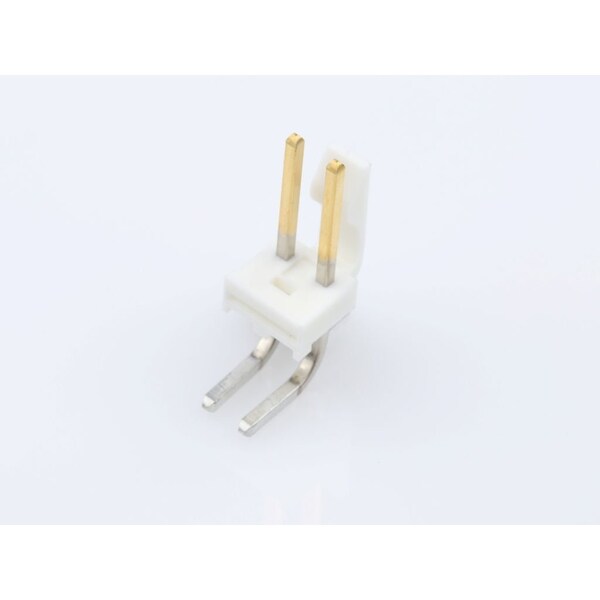

Molex Board Connector, 2 Contact(S), 1 Row(S), Male, Right Angle, 0.156 Inch Pitch, Solder Terminal, 417920528 - main

Board Connector, 2 Contact(S), 1 Row(S), Male, Right Angle, 0.156 Inch Pitch, Solder Terminal,

  • Mfr # 417920528

  • Zoro # G005893512

product price: $0.52
/ea
Sold in multiples of 169 for $87.88

Key Features

Max. Voltage
250V
Max. Temp.
235°C
Application
Power, Wire-to-Board
Series
41792
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
417920528
Zoro #
G005893512
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
3.96mm
PCB Thickness - Recommended
1.60mm

Details

Max. Voltage
250V
Max. Temp.
235°C
Application
Power, Wire-to-Board
Series
41792
Standards
CSA Certified; UL E29179
Material
Polyester
Terminal Type
Through Hole
Hole Center to Center
3.96 mm
Color
Natural
Terminal Finish
Tin Plated
Number of Rows
1
Flammability Rating
UL 94V-0
Current Rating
7 A
Contact Finish
Gold Plated
Number of Contacts
2
Orientation
Right Angle
Temperature Range - Operating
See Product Specification
Stackable
Yes
Max-Duration
5
Pitch - Mating Interface
3.96mm
Polarized to PCB
No
Shrouded
Partial
Plating min - Mating
0.762µm
Polarized to Mating Part
Yes
Material - Metal
Brass
PCB Locator
No
CSA
LR19980
Material - Plating Mating
Gold
Breakaway
No
Flammability
94V-0
Product Name
KK 396
Glow-Wire Capable
No
Component Type
PCB Header
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Max-Temp
235
PCB Retention
None
UL
E29179
Circuits (Loaded)
2
Material - Resin
Polyester
Durability (mating cycles max)
50
Current - Maximum per Contact
7.0A

Description

Board Connector, 2 Contact(S), 1 Row(S), Male, Right Angle, 0.156 Inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle
