  11. Board Connector, 20 Contact(S), 2 Row(S), Male, Right Angle, Solder Terminal

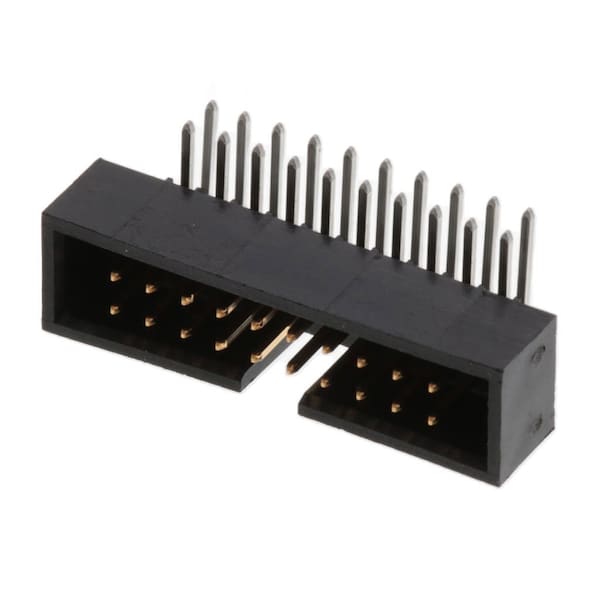

Molex Board Connector, 20 Contact(S), 2 Row(S), Male, Right Angle, Solder Terminal 702472054 - main

Board Connector, 20 Contact(S), 2 Row(S), Male, Right Angle, Solder Terminal

  • Mfr # 702472054

  • Zoro # G405891859

product price: $2.69
/ea
Sold in multiples of 33 for $88.77

Key Features

Max. Voltage
250V DC
Max. Temp.
235°C
Application
Signal, Wire-to-Board
Series
70247
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
702472054
Zoro #
G405891859
UPC #
822348758425
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
0.127 µm
PC Tail Length
2.54mm

Details

Max. Voltage
250V DC
Max. Temp.
235°C
Application
Signal, Wire-to-Board
Series
70247
Standards
CSA Certified; UL E29179
Color
Black
Material
Polyester
Terminal Type
Through Hole
Hole Center to Center
2.54 mm
Sub-Category
PCB Headers
Number of Contacts
20
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Number of Rows
2
Current Rating
2.5 A
Component Type
PCB Header
Material - Resin
Polyester
Max-Cycle
1
Flammability
94V-0
Max-Temp
235
Material - Plating Mating
Gold
Product Name
C-Grid
Glow-Wire Capable
No
Material - Plating Termination
Tin
Plating min - Mating
0.127µm
Lock to Mating Part
None
Max-Duration
10
First Mate / Last Break
No
Polarized to PCB
No
Stackable
No
Temperature Range - Operating
-55° to +120°C
PCB Locator
No
UL
E29179
Guide to Mating Part
No
Polarized to Mating Part
Yes
Orientation
Right Angle
Circuits (Loaded)
20
CSA
LR19980
Keying to Mating Part
None
Shrouded
Closed Ends
Pitch - Mating Interface
2.54mm
Breakaway
No
Current - Maximum per Contact
2.5A
Durability (mating cycles max)
50
