Shop MOLEX

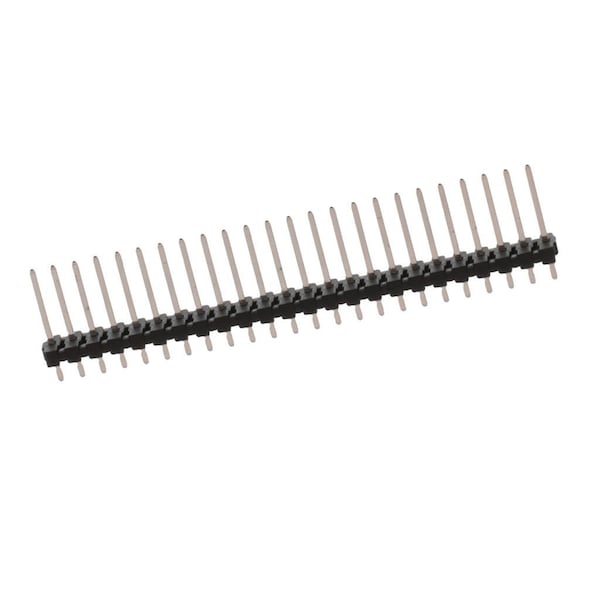

Board Connector, 24 Contact(S), 1 Row(S), Male, Straight, Solder Terminal

  • Mfr # 26481240

  • Zoro # G605892496

product price:
$
1.59
/ea
Sold in multiples of 55 for $87.45

Key Features

Application
Board-to-Board, Signal, Wire-to-Board
Series
41661
Polarized to Mating Part
No
Number of Rows
1
Pitch - Mating Interface
3.96mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
26481240
Zoro #
G605892496
UPC #
-
Country of Origin
India

Dimensions

PC Tail Length
4.37mm
PCB Thickness - Recommended
1.60mm

Details

Application
Board-to-Board, Signal, Wire-to-Board
Series
41661
Polarized to Mating Part
No
Number of Rows
1
Pitch - Mating Interface
3.96mm
Shrouded
No
Durability (mating cycles max)
25
Orientation
Vertical
Temperature Range - Operating
See Product Specification
Circuits (Loaded)
24
First Mate / Last Break
No
Max-Cycle
1
Color - Resin
Black
Guide to Mating Part
No
Flammability
94V-0
Keying to Mating Part
None
Voltage - Maximum
250V
Polarized to PCB
No
Termination Interface Style
Through Hole
Component Type
PCB Header
PCB Locator
No
Product Name
KK 396
Current - Maximum per Contact
4.5A
UL
E29179
Stackable
Yes
Glow-Wire Capable
No
Max-Temp
235
Material - Metal
Brass
Lock to Mating Part
None
Material - Resin
Polyester
PCB Retention
None
Material - Plating Termination
Tin
CSA
LR19980
Max-Duration
5
Breakaway
Yes
Material - Plating Mating
Tin
