  11. Board Connector, 24 Contact(S), 2 Row(S), Male, Straight, Solder Terminal, Locking, Black

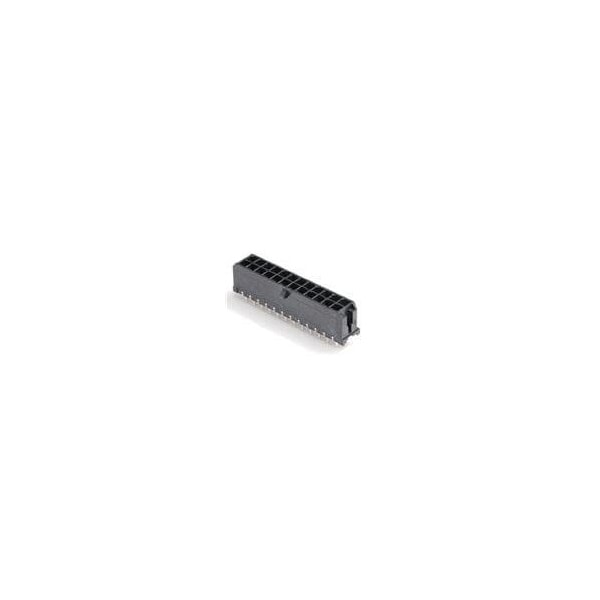

Molex Board Connector, 24 Contact(S), 2 Row(S), Male, Straight, Solder Terminal, Locking, Black 430452429 - main

Board Connector, 24 Contact(S), 2 Row(S), Male, Straight, Solder Terminal, Locking, Black

  • Mfr # 430452429

  • Zoro # G705893256

product price: $8.19
/ea
Sold in multiples of 15 for $122.85

Key Features

Max. Voltage
600V
Max. Temp.
260°C
Application
Power, Wire-to-Board
Series
43045
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
430452429
Zoro #
G705893256
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
Mated Height
17.64mm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.18mm

Details

Max. Voltage
600V
Max. Temp.
260°C
Application
Power, Wire-to-Board
Series
43045
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Color
Black
Hole Center to Center
3 mm
Current Rating
8.5 A
Material
High Temperature Thermoplastic
Features
Glow-Wire Capable; Surface Mount Compatible
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Number of Contacts
24
Contact Finish
Gold Plated
Number of Rows
2
Flammability
94V-0
Material - Plating Mating
Gold
PCB Locator
Yes
Shrouded
Fully
Temperature Range - Operating
-40° to +125°C
PCB Retention
None
UL
E29179
Lock to Mating Part
Yes
Max-Duration
30
Pitch - Mating Interface
3.00mm
Material - Plating Termination
Tin
Component Type
PCB Header
Polarized to PCB
Yes
Material - Metal
Brass
Breakaway
No
Material - Resin
High Temperature Thermoplastic
Max-Cycle
3
Max-Temp
260
Stackable
No
Circuits (Loaded)
24
Orientation
Vertical
Durability (mating cycles max)
30
Current - Maximum per Contact
8.5A
Product Name
Micro-Fit 3.0
CSA
LR19980
Plating min - Mating
0.762µm
Glow-Wire Capable
Yes

Description

Board Connector, 24 Contact(S), 2 Row(S), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle
