  11. Board Connector, 26 Contact(S), 2 Row(S), Female, 0.079 Inch Pitch, Idc Terminal, Friction Ramp,

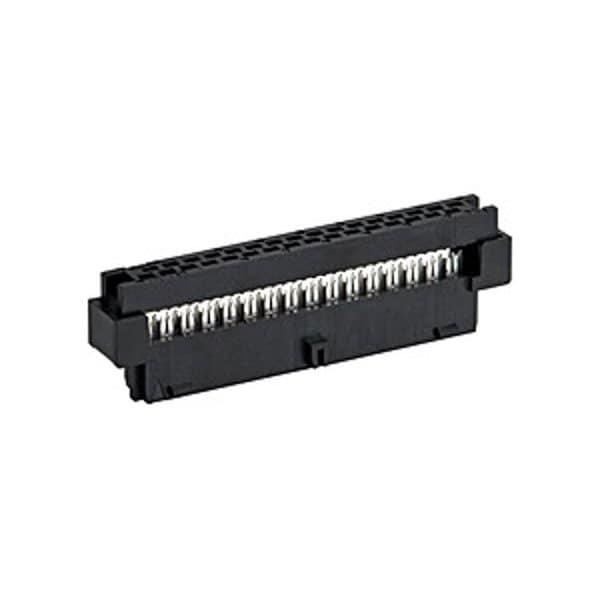

Molex Board Connector, 26 Contact(S), 2 Row(S), Female, 0.079 Inch Pitch, Idc Terminal, Friction Ramp, 875682693 - main

Board Connector, 26 Contact(S), 2 Row(S), Female, 0.079 Inch Pitch, Idc Terminal, Friction Ramp,

  • Mfr # 875682693

  • Zoro # G605891284

product price: $3.29
/ea
Sold in multiples of 27 for $88.83

Key Features

Wire Range
28 AWG
Max. Temp.
85°C
Max. Voltage
125V
Series
87568
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
875682693
Zoro #
G605891284
UPC #
-
Country of Origin
Singapore

Dimensions

Wire Size (AWG)
28

Details

Wire Range
28 AWG
Max. Temp.
85°C
Max. Voltage
125V
Series
87568
Standards
CSA Certified; UL E29179
Color
Black
Hole Center to Center
2 mm
Material
Polyester
Connector Type
Female
Terminal Type
IDT or Pierce
Number of Rows
2
Contact Finish
Gold Plated
Current Rating
1 A
Number of Contacts
26
Flammability Rating
UL 94V-0
Pitch - Mating Interface
2.00mm
Material - Resin
Polyester
Durability (mating cycles max)
100
Product Name
Milli-Grid
Current - Maximum per Contact
1.0A
Flammability
94V-0
Glow-Wire Capable
No
UL
E29179
CSA
LR19980
Polarized to Mating Part
Yes
Temperature Range - Operating
-45° to +105°C
Lock to Mating Part
Yes
Material - Plating Mating
Gold
Circuits (Loaded)
26
Stackable
No
Material - Metal
Copper Alloy

Description

Board Connector, 26 Contact(S), 2 Row(S), Female, 0.079 Inch Pitch, Idc Terminal, Friction Ramp, Black Insulator, Receptacle
