  11. Board Connector, 26 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking,

This item is Discontinued.

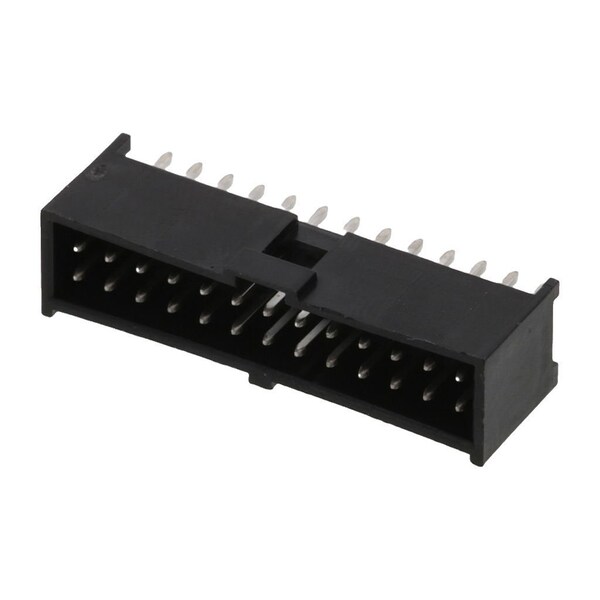

Molex Board Connector, 26 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, 901301126

Board Connector, 26 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, (Discontinued)

  • Mfr # 901301126
  • Zoro # G905891021
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901301126
Zoro #
G905891021
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
3.048 µm

Details

Max. Temp.
235°C
Max. Voltage
350V AC/DC
Standards
CSA Certified; UL E29179
Color
Black
Terminal Type
Through Hole
Hole Center to Center
2.54 mm
Material
Polyester
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Number of Rows
2
Number of Contacts
26
Current Rating
3 A
Flammability Rating
UL 94V-0

Description

Board Connector, 26 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
