  11. Board Connector, 3 Contact(S), 1 Row(S), Female, Right Angle, Surface Mount Terminal, Receptacle

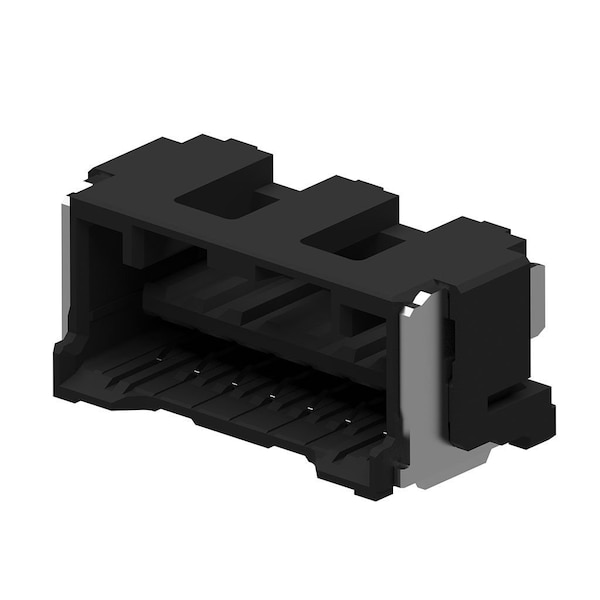

Molex Board Connector, 3 Contact(S), 1 Row(S), Female, Right Angle, Surface Mount Terminal, Receptacle 5025850371 - main

Board Connector, 3 Contact(S), 1 Row(S), Female, Right Angle, Surface Mount Terminal, Receptacle

  • Mfr # 5025850371

  • Zoro # G605893370

product price: $0.67
/ea
Sold in multiples of 1000 for $670.00

Key Features

Max. Temp.
105°C
Max. Voltage
100V
Application
Signal, Wire-to-Board
Series
502585
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5025850371
Zoro #
G605893370
UPC #
-
Country of Origin
Japan

Dimensions

Mated Height
6.40mm

Details

Max. Temp.
105°C
Max. Voltage
100V
Application
Signal, Wire-to-Board
Series
502585
Standards
UL E29179
Terminal Type
Surface Mount
Hole Center to Center
1.5 mm
Material
Copper Alloy
Color
Black
Current Rating
2 A
Flammability Rating
SC-0
Number of Contacts
3
Contact Finish
Tin Plated
Number of Rows
1
Keying to Mating Part
None
Material - Plating Mating
Tin
Stackable
No
Guide to Mating Part
Yes
UL
E29179
Polarized to PCB
No
Glow-Wire Capable
No
Component Type
PCB Receptacle
Orientation
Right Angle
Pitch - Mating Interface
1.50mm
Polarized to Mating Part
Yes
PCB Locator
No
PCB Retention
Yes
Circuits (Loaded)
3
Lock to Mating Part
Yes
Durability (mating cycles max)
30
Product Name
CLIK-Mate
Current - Maximum per Contact
2.0A
Temperature Range - Operating
-40° to +105°C
