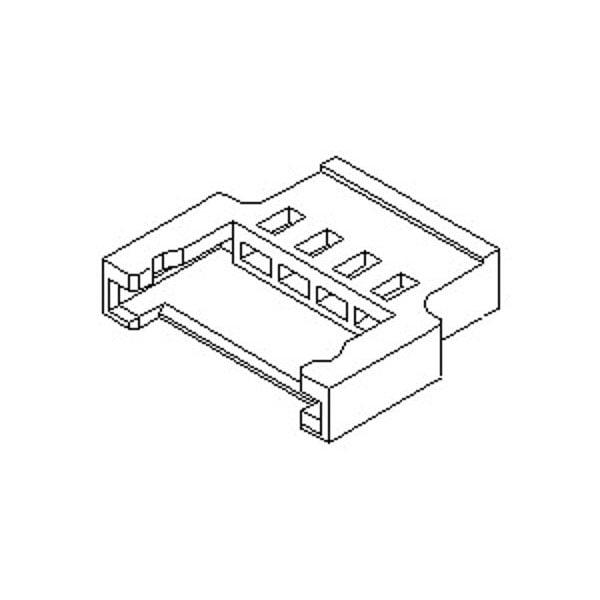

Board Connector, 3 Contact(S), 1 Row(S), Male, 0.079 Inch Pitch, Crimp Terminal, Plug
Mfr # 510060300
Zoro # G905893599
product price:Â
$
0.22
/ea
Sold in multiples of 455 for $100.10
Key Features
Application
Signal, Wire-to-Wire
Series
51006
Number of Rows
1
Pitch - Mating Interface
2.00mm
Color - Resin
Natural
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 510060300
- Zoro #
- G905893599
- UPC #
- -
- Country of Origin
- Japan
- Application
- Signal, Wire-to-Wire
- Series
- 51006
- Number of Rows
- 1
- Pitch - Mating Interface
- 2.00mm
- Color - Resin
- Natural
- CSA
- LR19980
- Circuits (maximum)
- 3
- Temperature Range - Operating
- -40° to +105°C
- Stackable
- No
- UL
- E29179
- Glow-Wire Capable
- No
- Current - Maximum per Contact
- 2.0A
- Lock to Mating Part
- None
- Material - Resin
- Polyester
- Flammability
- 94V-0
- Gender
- Plug
