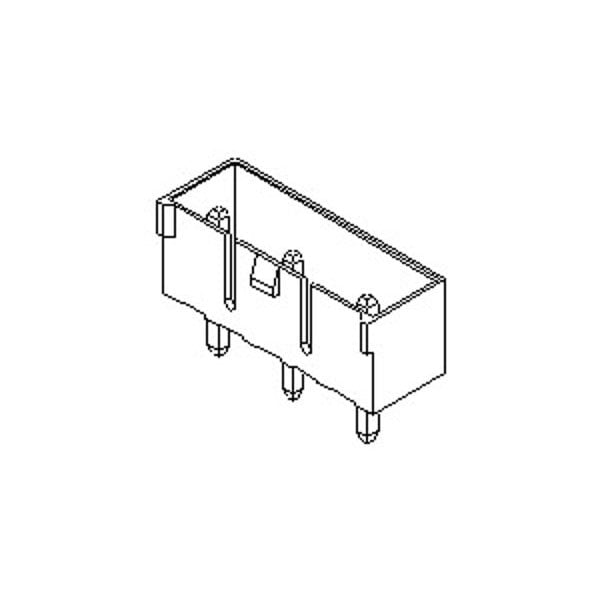

Board Connector, 3 Contact(S), 1 Row(S), Male, Straight, Solder Terminal

  • Mfr # 353280360

  • Zoro # G705893393

product price:
$
0.12
/ea
Sold in multiples of 800 for $96.00

Key Features

Application
Power, Wire-to-Board
Series
35328
Stackable
No
Polarized to Mating Part
Yes
Current - Maximum per Contact
7.0A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
353280360
Zoro #
G705893393
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.40mm

Details

Application
Power, Wire-to-Board
Series
35328
Stackable
No
Polarized to Mating Part
Yes
Current - Maximum per Contact
7.0A
Plating min - Mating
5.080µm
Material - Plating Mating
Tin
First Mate / Last Break
No
PCB Retention
None
Lock to Mating Part
Yes
Material - Resin
Nylon
Circuits (Loaded)
3
Number of Rows
1
Orientation
Vertical
CSA
LR19980
Breakaway
No
Voltage - Maximum
250V
UL
E29179
Color - Resin
Natural
Component Type
PCB Header
Keying to Mating Part
None
Material - Plating Termination
Tin
PCB Locator
No
Polarized to PCB
No
Shrouded
Partial
Guide to Mating Part
No
Flammability
94V-0
Pitch - Mating Interface
7.92mm
Termination Interface Style
Through Hole
Durability (mating cycles max)
30
Glow-Wire Capable
No
Temperature Range - Operating
-40° to +105°C
