  11. Board Connector, 30 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black

This item is Discontinued.

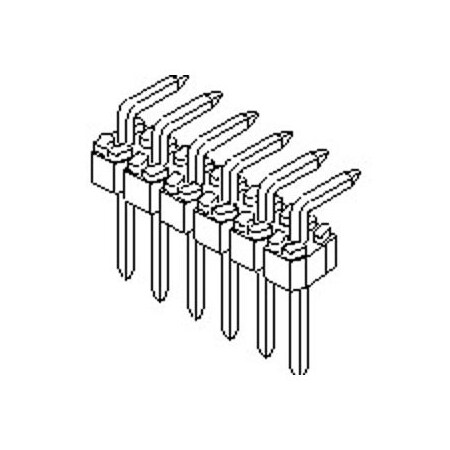

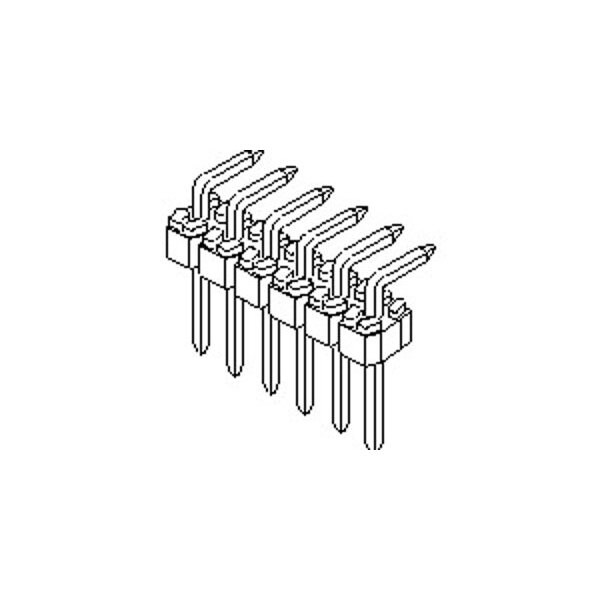

Molex Board Connector, 30 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black 901210150

Board Connector, 30 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black (Discontinued)

  • Mfr # 901210150
  • Zoro # G905891205
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901210150
Zoro #
G905891205
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
4.064 µm
PC Tail Length
2.90mm

Details

Max. Voltage
350V
Max. Temp.
260°C
Application
Signal, Wire-to-Board
Series
90121
Standards
UL E29179
Hole Center to Center
2.54 mm
Terminal Type
Through Hole
Material
Polyester
Features
Breakaway
Color
Black
Number of Rows
1
Number of Contacts
30
Terminal Finish
Tin Plated
Current Rating
3 A
Flammability Rating
UL 94V-0
Contact Finish
Tin Plated
Pitch - Mating Interface
2.54mm
Breakaway
Yes
Current - Maximum per Contact
3.0A
Product Name
C-Grid III
Material - Resin
Polyester
Orientation
Right Angle
Polarized to PCB
No
Glow-Wire Capable
No
Component Type
PCB Header
Material - Metal
Brass
Circuits (Loaded)
30
UL
E29179
Polarized to Mating Part
No
Max-Duration
5
First Mate / Last Break
No
Stackable
No
Shrouded
No
Material - Plating Termination
Tin
Lock to Mating Part
None
PCB Retention
None
Plating min - Mating
4.064µm
Material - Plating Mating
Tin
Max-Temp
260
Flammability
94V-0
PCB Locator
No
Temperature Range - Operating
-55° to +125°C
Keying to Mating Part
None
Guide to Mating Part
No

Description

Board Connector, 30 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black Insulator, Receptacle
