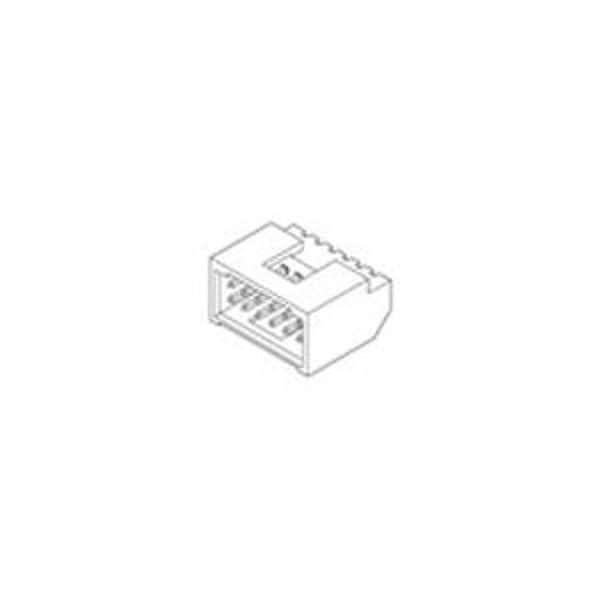

Molex Board Connector, 32 Contact(S), 2 Row(S), Male, Right Angle, Solder Terminal 741621232 - main

Board Connector, 32 Contact(S), 2 Row(S), Male, Right Angle, Solder Terminal

  • Mfr # 741621232

  • Zoro # G605893103

product price:  $5.89
/ea
Sold in multiples of 12 for $70.68

Key Features

Max. Voltage
250V
Max. Temp.
260°C
Application
Board-to-Board, Signal
Series
74162
Standards
UL E29179
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
741621232
Zoro #
G605893103
UPC #
883906880064
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
3.18mm

Details

Max. Voltage
250V
Max. Temp.
260°C
Application
Board-to-Board, Signal
Series
74162
Standards
UL E29179
Terminal Type
Through Hole
Material
High Temperature Thermoplastic
Color
Black
Hole Center to Center
2.54 mm
Sub-Category
PCB Receptacles
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
Number of Rows
2
Current Rating
2.5 A
Number of Contacts
32
Material - Plating Mating
Gold
Keying to Mating Part
None
Component Type
PCB Header
Flammability
94V-0
Pitch - Mating Interface
2.54mm
Material - Resin
High Performance Thermoplastic
Material - Plating Termination
Tin
Breakaway
No
PCB Locator
No
Max-Duration
5
Robotic Placement
None
Max-Cycle
1
Orientation
Right Angle
Polarized to Mating Part
No
Product Name
C-Grid
Stackable
No
Temperature Range - Operating
-40° to +105°C
Material - Metal
Phosphor Bronze
Durability (mating cycles max)
50
Lock to Mating Part
Yes
Plating min - Mating
0.381µm
Max-Temp
260
Shrouded
Fully
Guide to Mating Part
No
Current - Maximum per Contact
2.5A
Circuits (Loaded)
32
Glow-Wire Capable
No
UL
E29179
PCB Retention
None
Polarized to PCB
No
