  11. Board Connector, 36 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal,

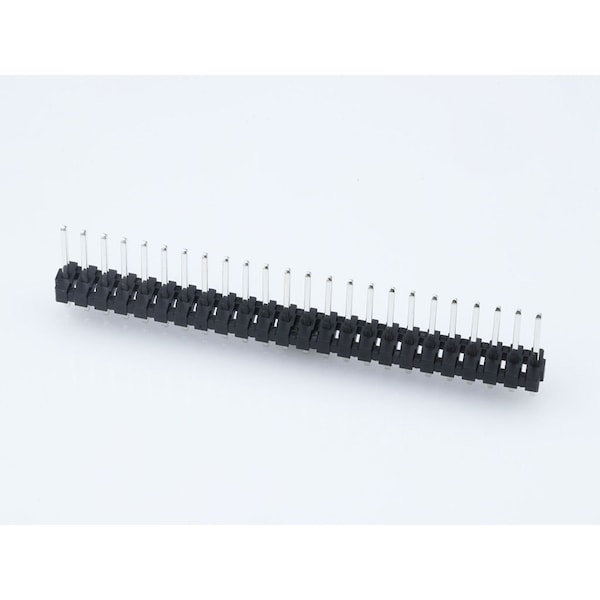

Molex Board Connector, 36 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, 22289363 - main

Board Connector, 36 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal,

  • Mfr # 22289363

  • Zoro # G005892133

product price: $2.19
/ea
Sold in multiples of 1000 for $2,190.00

Key Features

Max. Voltage
500V
Max. Temp.
235°C
Application
Board-to-Board, Signal, Wire-to-Board
Series
42377
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22289363
Zoro #
G005892133
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.381 µm
PC Tail Length
3.43mm
PCB Thickness - Recommended
1.60mm

Details

Max. Voltage
500V
Max. Temp.
235°C
Application
Board-to-Board, Signal, Wire-to-Board
Series
42377
Standards
CSA Certified; UL E29179
Features
Breakaway; Surface Mount Compatible
Material
High Temperature Thermoplastic
Hole Center to Center
2.54 mm
Terminal Type
Through Hole
Color
Black
Flammability Rating
UL 94V-0
Number of Contacts
36
Terminal Finish
Tin Plated
Current Rating
4 A
Contact Finish
Gold Plated
Number of Rows
1
Pitch - Mating Interface
2.54mm
Orientation
Right Angle
Component Type
PCB Header
Material - Metal
Brass
Lock to Mating Part
None
Polarized to Mating Part
Yes
Breakaway
Yes
Material - Plating Mating
Gold
Temperature Range - Operating
See Product Specification
CSA
LR19980
Durability (mating cycles max)
100
Plating min - Mating
0.381µm
Polarized to PCB
No
Flammability
94V-0
Max-Duration
5
Max-Temp
235
Product Name
KK 254
PCB Retention
Yes
PCB Locator
No
Material - Resin
High Temperature Thermoplastic
UL
E29179
Circuits (Loaded)
36
Material - Plating Termination
Tin
Shrouded
Partial
Glow-Wire Capable
No
Current - Maximum per Contact
4.0A
Stackable
No

Description

Board Connector, 36 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Receptacle
