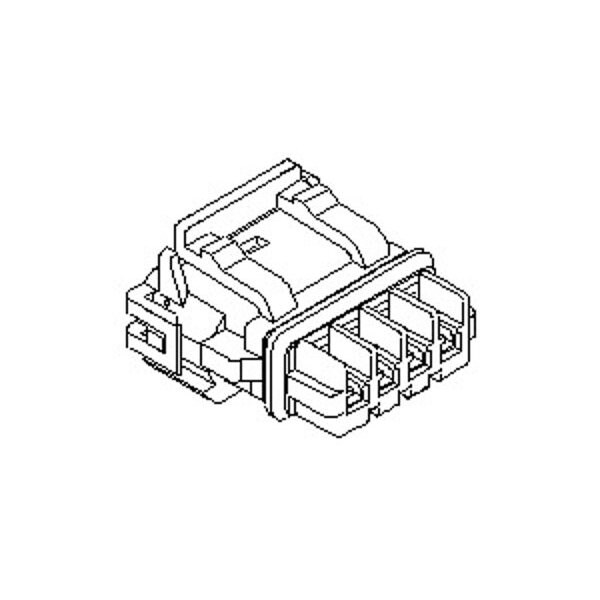

Board Connector, 4 Contact(S), 1 Row(S), Female, 0.098 Inch Pitch, Crimp Terminal, Locking, Black
Mfr # 521170413
Zoro # G505893777
product price: $2.99
/eaSold in multiples of 30 for $89.70
Key Features
Max. Temp.
105°C
Application
Signal, Wire-to-Wire
Series
52117
Standards
UL E29179
Hole Center to Center
2.5 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
521170413
Zoro #
G505893777
UPC #
756054598092
Country of Origin
Japan
Details
Item
Miniature Waterproof Connector
Max. Temp.
105°C
Application
Signal, Wire-to-Wire
Series
52117
Standards
UL E29179
Hole Center to Center
2.5 mm
Color
Black
Sub-Category
Crimp Housings
Connector Type
Receptacle
Material
Polyester
Current Rating
3 A
Number of Rows
1
Number of Contacts
2
UL
E29179
Lock to Mating Part
Yes
Glow-Wire Capable
No
Material - Resin
Polyester
Temperature Range - Operating
-40° to +105°C
Product Name
Mizu-P25 Waterproof,Splash Proof
Stackable
No
Current - Maximum per Contact
3.0A
Circuits (maximum)
2
Pitch - Mating Interface
2.50mm
Description
Board Connector, 4 Contact(S), 1 Row(S), Female, 0.098 Inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle
