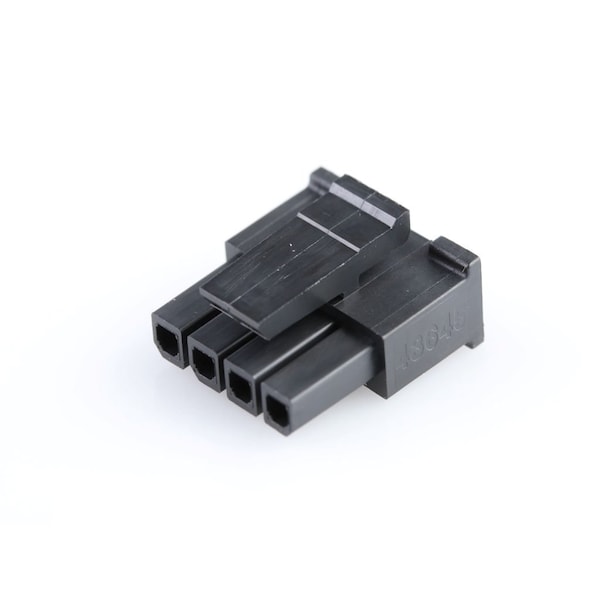

Board Connector, 4 Contact(S), 1 Row(S), Female, Straight, 0.118 Inch Pitch, Crimp Terminal,
- Mfr # 436450400
- Zoro # G205893237
product price:Â
$
0.31
/ea
Sold in multiples of 350 for
$108.50
Key Features
Max. Temp.
105°C
Application
Power, Wire-to-Board, Wire-to-Wire
Series
43645
Standards
CSA Certified; UL E29179
Connector Type
Receptacle
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 436450400
- Zoro #
- G205893237
- UPC #
- -
- Country of Origin
- China
Details
- Max. Temp.
- 105°C
- Application
- Power, Wire-to-Board, Wire-to-Wire
- Series
- 43645
- Standards
- CSA Certified; UL E29179
- Connector Type
- Receptacle
- Material
- Polyester
- Color
- Black
- Hole Center to Center
- 3 mm
- Flammability Rating
- UL 94V-0
- Number of Rows
- 1
- Number of Contacts
- 4
- Stackable
- No
- CSA
- LR19980
- Pitch - Mating Interface
- 3.00mm
- Flammability
- 94V-0
- Lock to Mating Part
- Yes
- Temperature Range - Operating
- -40° to +105°C
- Product Name
- Micro-Fit 3.0
- Material - Resin
- Polyester
- Polarized to Mating Part
- Yes
- Glow-Wire Capable
- No
- UL
- E29179
- Circuits (maximum)
- 4
- Keying to Mating Part
- None
Description
Board Connector, 4 Contact(S), 1 Row(S), Female, Straight, 0.118 Inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle
