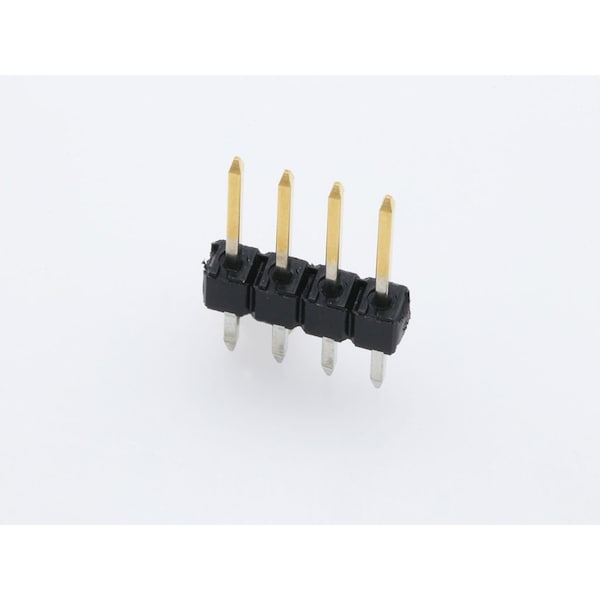

Molex Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, 22284046 - main

Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking,

  • Mfr # 22284046

  • Zoro # G105892002

product price:  $0.31
/ea
Sold in multiples of 281 for $87.11

Key Features

Max. Voltage
500V
Max. Temp.
260°C
Application
Board-to-Board, Signal, Wire-to-Board
Series
42375
Standards
CSA Certified; UL E29179
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22284046
Zoro #
G105892002
UPC #
-
Country of Origin
India

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.18mm

Details

Max. Voltage
500V
Max. Temp.
260°C
Application
Board-to-Board, Signal, Wire-to-Board
Series
42375
Standards
CSA Certified; UL E29179
Features
Breakaway; Surface Mount Compatible
Color
Black
Terminal Type
Through Hole
Hole Center to Center
2.54 mm
Material
High Temperature Thermoplastic
Flammability Rating
UL 94V-0
Number of Rows
1
Contact Finish
Gold Plated
Current Rating
4 A
Terminal Finish
Tin Plated
Number of Contacts
4
Durability (mating cycles max)
100
Stackable
No
First Mate / Last Break
No
Max-Duration
5
Polarized to PCB
No
Guide to Mating Part
No
Circuits (Loaded)
4
Component Type
PCB Header
Glow-Wire Capable
No
Polarized to Mating Part
No
Shrouded
No
Material - Plating Mating
Gold
Keying to Mating Part
None
Max-Temp
260
Product Name
KK 254
Flammability
94V-0
Material - Resin
High Temperature Thermoplastic
PCB Locator
No
Plating min - Mating
0.762µm
Material - Plating Termination
Tin
UL
E29179
Temperature Range - Operating
See Product Specification
Current - Maximum per Contact
4.0A
Breakaway
Yes
Material - Metal
Brass
Pitch - Mating Interface
2.54mm
Orientation
Vertical
Lock to Mating Part
None
CSA
LR19980
PCB Retention
None

Description

Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
