  11. Board Connector, 5 Contact(S), 1 Row(S), Female, Right Angle, 0.039 Inch Pitch, Surface Mount

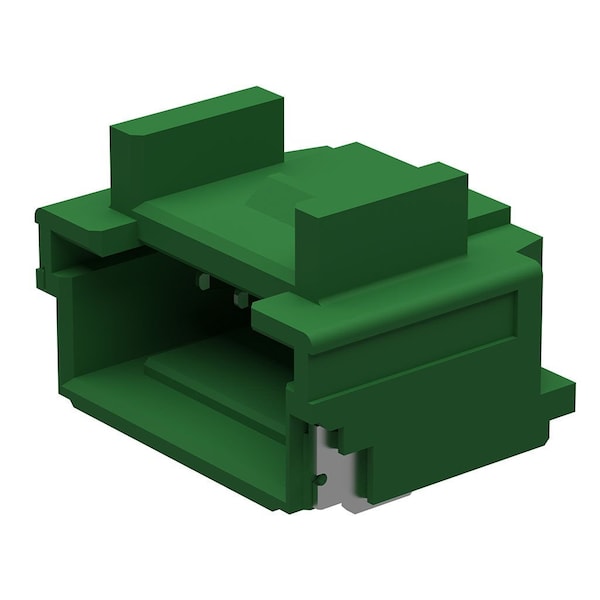

Molex Board Connector, 5 Contact(S), 1 Row(S), Female, Right Angle, 0.039 Inch Pitch, Surface Mount 5019530567 - main

Board Connector, 5 Contact(S), 1 Row(S), Female, Right Angle, 0.039 Inch Pitch, Surface Mount

  • Mfr # 5019530567

  • Zoro # G705892594

product price: $0.33
/ea
Sold in multiples of 321 for $105.93

Key Features

Application
Signal, Wire-to-Board
Series
501953
Number of Rows
1
Material - Plating Termination
Gold
Shrouded
Fully
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5019530567
Zoro #
G705892594
UPC #
-
Country of Origin
Japan

Dimensions

Mated Height
4.75mm

Details

Application
Signal, Wire-to-Board
Series
501953
Number of Rows
1
Material - Plating Termination
Gold
Shrouded
Fully
Current - Maximum per Contact
1.5A
Breakaway
No
Product Name
Pico-Clasp
Circuits (Loaded)
5
Material - Metal
Phosphor Bronze
Polarized to Mating Part
Yes
Pitch - Mating Interface
1.00mm
Durability (mating cycles max)
30
Guide to Mating Part
No
UL
E29179
Stackable
No
Material - Plating Mating
Gold
Plating min - Mating
0.102µm
Component Type
PCB Header
Voltage - Maximum
100V AC (RMS)/DC
Material - Resin
Nylon
Lock to Mating Part
Yes
PCB Retention
Yes
First Mate / Last Break
No
Polarized to PCB
No
PCB Locator
No
Temperature Range - Operating
-40° to +105°C
Keying to Mating Part
None
Termination Interface Style
Surface Mount
Glow-Wire Capable
No
Orientation
Right Angle
Color - Resin
Green

Description

Board Connector, 5 Contact(S), 1 Row(S), Female, Right Angle, 0.039 Inch Pitch, Surface Mount Terminal, Locking
