  6. Board Connector, 5 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Receptacle

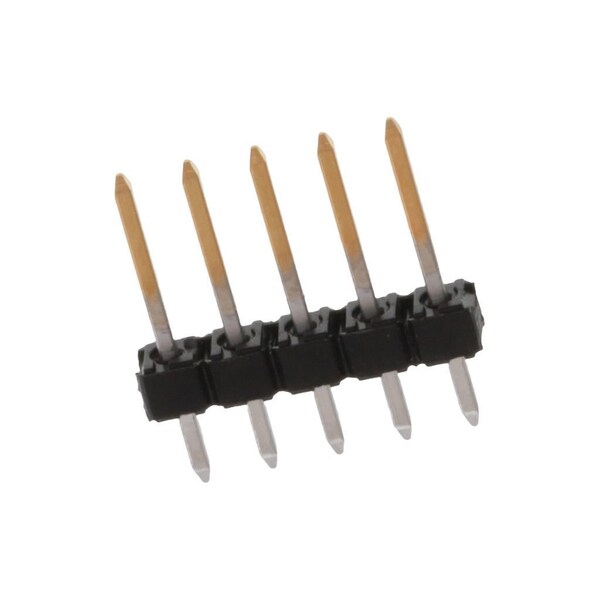

Molex Board Connector, 5 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Receptacle 22284055 - main

Board Connector, 5 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Receptacle

  • Mfr # 22284055

  • Zoro # G305891898

product price:  $0.23
/ea
Sold in multiples of 397 for $91.31

Key Features

Max. Voltage
500V
Max. Temp.
260°C
Application
Board-to-Board, Signal, Wire-to-Board
Series
42375
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
22284055
Zoro #
G305891898
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.381 µm
PC Tail Length
3.05mm
PCB Thickness - Recommended
1.60mm

Details

Max. Voltage
500V
Max. Temp.
260°C
Application
Board-to-Board, Signal, Wire-to-Board
Series
42375
Standards
CSA Certified; UL E29179
Hole Center to Center
2.54 mm
Material
High Temperature Thermoplastic
Features
Breakaway; Surface Mount Compatible
Terminal Type
Through Hole
Color
Black
Contact Finish
Gold Plated
Number of Contacts
5
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Current Rating
4 A
Number of Rows
1
Pitch - Mating Interface
2.54mm
Component Type
PCB Header
PCB Locator
No
Material - Resin
High Temperature Thermoplastic
Breakaway
Yes
Plating min - Mating
0.381µm
Circuits (Loaded)
5
First Mate / Last Break
No
Polarized to Mating Part
No
UL
E29179
Max-Temp
260
Product Name
KK 254
Temperature Range - Operating
See Product Specification
Polarized to PCB
No
Flammability
94V-0
Keying to Mating Part
None
Glow-Wire Capable
No
Lock to Mating Part
None
Guide to Mating Part
No
Durability (mating cycles max)
100
Current - Maximum per Contact
4.0A
Material - Plating Mating
Gold
Material - Metal
Brass
Shrouded
No
Stackable
No
Material - Plating Termination
Tin
CSA
LR19980
PCB Retention
None
Orientation
Vertical
Max-Duration
5
