This item is Discontinued.

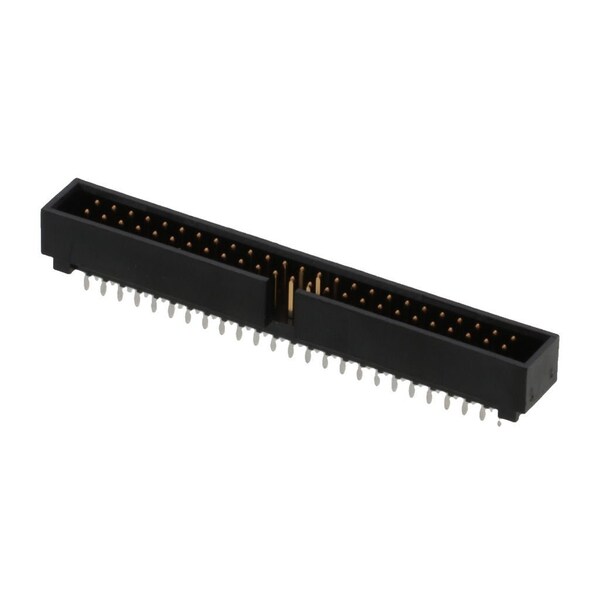

Molex Board Connector, 50 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Guide 702465001

Board Connector, 50 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Guide (Discontinued)

  • Mfr # 702465001
  • Zoro # G905891649
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
702465001
Zoro #
G905891649
UPC #
822348487615
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
0.381 µm

Details

Max. Temp.
235°C
Max. Voltage
250V DC
Application
Signal, Wire-to-Board
Series
70246
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Sub-Category
PCB Headers
Hole Center to Center
2.54 mm
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Number of Contacts
50
Current Rating
2.5 A
Terminal Finish
Tin Plated
Number of Rows
2

Description

Board Connector, 50 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle
