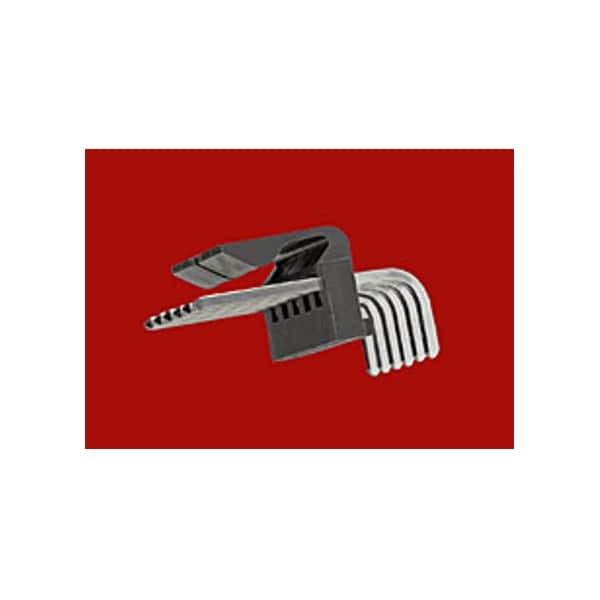

Board Connector, 7 Contact(S), 1 Row(S), Male, Right Angle, 0.156 Inch Pitch, Solder Terminal,

Mfr # 1718141007
Zoro # G905790126

Sold in multiples of 35 for $89.25

Key Features

Color

Black

Insulation Material

Nylon

Max. Voltage

250V

Maximum Voltage

250 V

Application

Power, Signal, Wire-to-Board

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 1718141007
Zoro #: G905790126
UPC #: -
Country of Origin: Mexico

Dimensions

PCB Thickness - Recommended: 1.60mm

Details

Item: KK 396
Color: Black
Insulation Material: Nylon
Max. Voltage: 250V
Maximum Voltage: 250 V
Application: Power, Signal, Wire-to-Board
Current: 7 A
Series: 171814
Standards: CSA Certified; UL E29179
Maximum Operating Temperature: 260 Degrees C
UL 94 Flammability Rating: V-1
Material: Nylon
Terminal Type: Through Hole
Max. Temp.: 260°C
Number of Rows: 1
Current Rating: 7 A
Number of Contacts: 7
Features: Surface Mount Compatible
Hole Center to Center: 3.96 mm
Contact Finish: Gold Plated
Flammability Rating: UL 94V-1
Terminal Finish: Nickel Plated
PCB Retention: None
Component Type: PCB Header
Max-Cycle: 3
Pitch - Mating Interface: 3.96mm
Current - Maximum per Contact: 7.0A
Lock to Mating Part: Yes
Material - Resin: Nylon
Max-Temp: 260
Stackable: No
Material - Plating Termination: Nickel
Material - Plating Mating: Gold
Shrouded: Partial
Orientation: Right Angle
Breakaway: No
Flammability: 94V-1
Max-Duration: 30
Temperature Range - Operating: -40° to +105°C
UL: E29179
Durability (mating cycles max): 25
PCB Locator: No
First Mate / Last Break: No
CSA: LR19980
Glow-Wire Capable: No
Guide to Mating Part: No
Product Name: KK 396
Keying to Mating Part: None
Circuits (Loaded): 7

Description

Board Connector, 7 Contact(S), 1 Row(S), Male, Right Angle, 0.156 Inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
