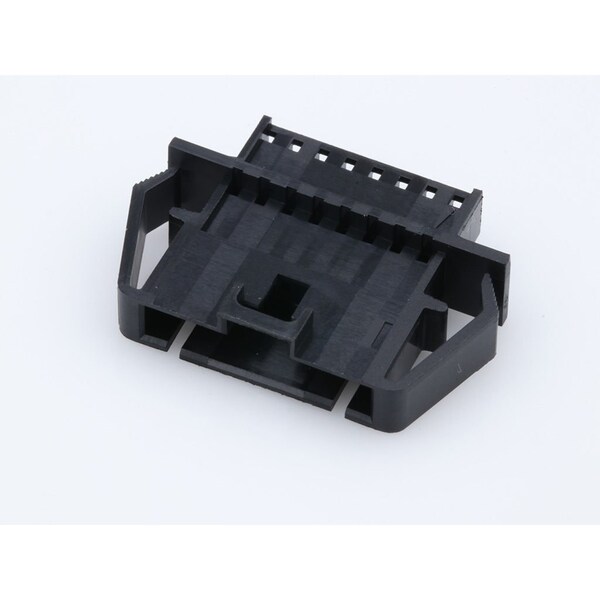

Board Connector, 8 Contact(S), 1 Row(S), Male, 0.1 Inch Pitch, Crimp Terminal, Black Insulator
- Mfr # 701070042
- Zoro # G305891416
product price:Â
$
0.99
/ea
Sold in multiples of 100 for
$99.00
Key Features
Max. Temp.
105°C
Application
Signal, Wire-to-Wire
Series
70107
Standards
CSA Certified; UL E29179
Connector Type
Plug
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 701070042
- Zoro #
- G305891416
- UPC #
- -
- Country of Origin
- United States
Details
- Max. Temp.
- 105°C
- Application
- Signal, Wire-to-Wire
- Series
- 70107
- Standards
- CSA Certified; UL E29179
- Connector Type
- Plug
- Hole Center to Center
- 2.54 mm
- Material
- Polyester
- Color
- Black
- Number of Rows
- 1
- Flammability Rating
- UL 94V-0
- Number of Contacts
- 8
- Flammability
- 94V-0
- Circuits (maximum)
- 8
- Polarized to Mating Part
- Yes
- Lock to Mating Part
- None
- UL
- E29179
- Product Name
- SL
- Stackable
- No
- Pitch - Mating Interface
- 2.54mm
- Panel Mount
- Yes
- Material - Resin
- Polyester
- CSA
- LR19980
- Glow-Wire Capable
- No
- Temperature Range - Operating
- -40° to +105°C
