  6. Board Connector, 8 Contact(S), 1 Row(S), Male, Straight, 0.156 Inch Pitch, Solder Terminal, Latch,

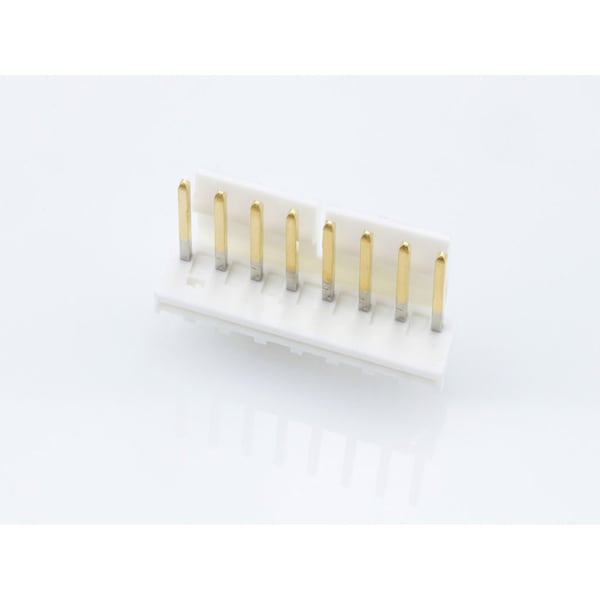

Molex Board Connector, 8 Contact(S), 1 Row(S), Male, Straight, 0.156 Inch Pitch, Solder Terminal, Latch, 26614080 - main

Board Connector, 8 Contact(S), 1 Row(S), Male, Straight, 0.156 Inch Pitch, Solder Terminal, Latch,

  • Mfr # 26614080

  • Zoro # G605892557

product price:  $2.35
/ea
Sold in multiples of 39 for $91.65

Key Features

Max. Temp.
235°C
Max. Voltage
250V
Application
Power, Wire-to-Board
Series
41791
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
26614080
Zoro #
G605892557
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.56mm
PCB Thickness - Recommended
1.60mm

Details

Max. Temp.
235°C
Max. Voltage
250V
Application
Power, Wire-to-Board
Series
41791
Standards
CSA Certified; UL E29179
Material
Polyester
Hole Center to Center
3.96 mm
Color
Natural
Terminal Type
Through Hole
Contact Finish
Gold Plated
Current Rating
7 A
Number of Contacts
8
Terminal Finish
Matte Tin Plated
Number of Rows
1
Flammability Rating
UL 94V-0
Component Type
PCB Header
Orientation
Vertical
Breakaway
No
PCB Locator
No
Temperature Range - Operating
See Product Specification
UL
E29179
Material - Resin
Polyester
CSA
LR19980
Polarized to PCB
No
Max-Duration
5
Glow-Wire Capable
No
Voltage - Maximum
600V AC (RMS)/DC
Durability (mating cycles max)
25
Lock to Mating Part
Yes
Material - Metal
Brass
Circuits (Loaded)
8
Material - Plating Termination
Matte Tin
Product Name
KK 396
Stackable
Yes
Pitch - Mating Interface
3.96mm
Current - Maximum per Contact
7.0A
Polarized to Mating Part
Yes
Max-Temp
235
PCB Retention
None
Shrouded
Partial
Material - Plating Mating
Gold
Flammability
94V-0

Description

Board Connector, 8 Contact(S), 1 Row(S), Male, Straight, 0.156 Inch Pitch, Solder Terminal, Latch, Receptacle
