  11. Board Connector, 8 Contact(S), 2 Row(S), Female, 0.1 Inch Pitch, Idc Terminal, Guide Slot, White

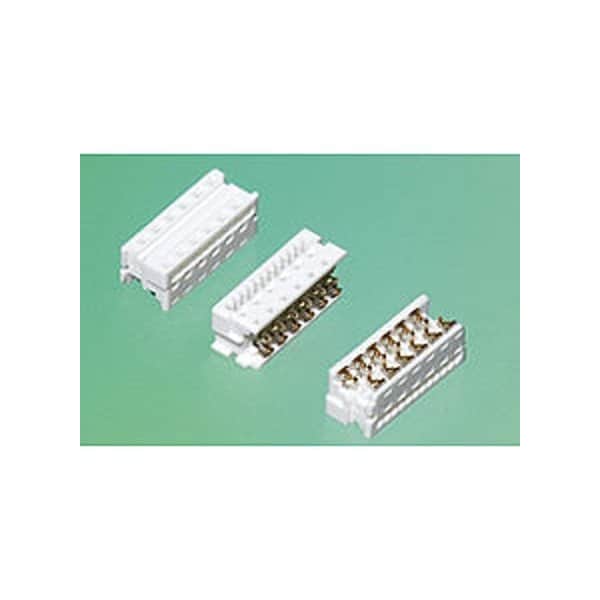

Molex Board Connector, 8 Contact(S), 2 Row(S), Female, 0.1 Inch Pitch, Idc Terminal, Guide Slot, White 903273308 - main

Board Connector, 8 Contact(S), 2 Row(S), Female, 0.1 Inch Pitch, Idc Terminal, Guide Slot, White

  • Mfr # 903273308

  • Zoro # G905891137

product price: $1.65
/ea
Sold in multiples of 54 for $89.10

Key Features

Max. Single Wire Size
26 AWG
Min. Single Wire Size
28 AWG
Max. Voltage
250V
Max. Temp.
105°C
Series
90327
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
903273308
Zoro #
G905891137
UPC #
-
Country of Origin
Ireland

Dimensions

Max. Single Wire Size
26 AWG
Min. Single Wire Size
28 AWG
Max. Insulation Dia.
1 mm
Wire Size (AWG)
26, 28
Wire Insulation Diameter
1.00mm max.

Details

Max. Voltage
250V
Max. Temp.
105°C
Series
90327
Standards
CSA Certified; UL E29179
Material
Polyester
Terminal Type
IDT or Pierce
Hole Center to Center
1.27 mm
Color
White
Current Rating
1.2 A
Contact Finish
Palladium Nickel Plated
Flammability Rating
UL 94V-0
Number of Rows
2
Terminal Finish
Gold Plated
Number of Contacts
8
Gender
Receptacle
Durability (mating cycles max)
100
Polarized to PCB
No
Product Name
Picoflex
Entry Angle
Vertical
Stackable
No
Component Type
Housing
Lock to Mating Part
Yes
Material - Resin
Polyester
Material - Metal
Phosphor Bronze
Material - Plating Termination
Gold
Circuits (Loaded)
8
PCB Retention
None
Flammability
94V-0
Temperature Range - Operating
-40° to +105°C
Glow-Wire Capable
No
UL
E29179
Polarized to Mating Part
Yes
CSA
LR19980
Wire/Cable Type
Ribbon Cable
Pitch - Mating Interface
1.27mm
Shrouded
Fully
Material - Plating Mating
Gold
Current - Maximum per Contact
1.2A
PCB Locator
No

Description

Board Connector, 8 Contact(S), 2 Row(S), Female, 0.1 Inch Pitch, Idc Terminal, Guide Slot, White Insulator, Plug
