  11. Board Connector, 9 Contact(S), 1 Row(S), Male, Straight, 0.098 Inch Pitch, Solder Terminal,

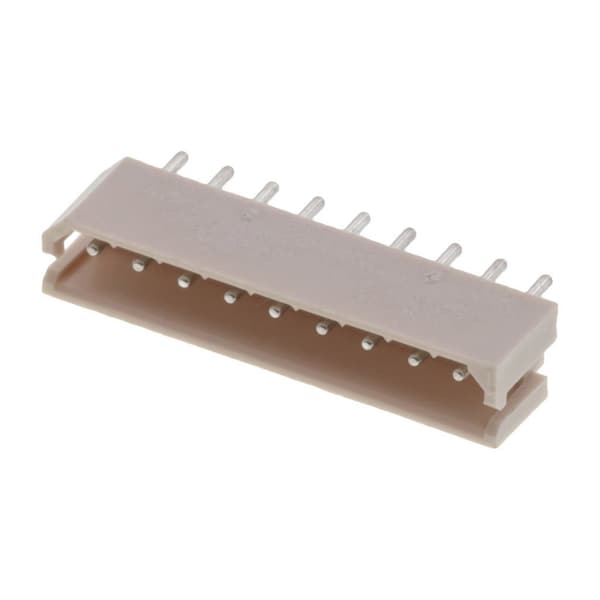

Molex Board Connector, 9 Contact(S), 1 Row(S), Male, Straight, 0.098 Inch Pitch, Solder Terminal, 22035095 - main

Board Connector, 9 Contact(S), 1 Row(S), Male, Straight, 0.098 Inch Pitch, Solder Terminal,

  • Mfr # 22035095

  • Zoro # G105892279

product price: $0.28
/ea
Sold in multiples of 313 for $87.64

Key Features

Max. Temp.
105°C
Max. Voltage
250V
Application
Signal, Wire-to-Board
Series
5267
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
22035095
Zoro #
G105892279
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Contact Plating Thickness
4.064 µm
PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Max. Temp.
105°C
Max. Voltage
250V
Application
Signal, Wire-to-Board
Series
5267
Standards
CSA Certified; UL E29179
Material
Nylon
Hole Center to Center
2.5 mm
Color
Natural
Terminal Type
Through Hole
Number of Rows
1
Contact Finish
Tin Plated
Flammability Rating
UL 94V-0
Current Rating
3 A
Terminal Finish
Tin Plated
Number of Contacts
9
PCB Retention
Yes
Material - Resin
Nylon
Current - Maximum per Contact
3.0A
Product Name
Mini-SPOX
Stackable
No
Guide to Mating Part
No
Plating min - Mating
4.064µm
Keying to Mating Part
None
Orientation
Vertical
Material - Plating Mating
Tin
Polarized to PCB
No
UL
E29179
CSA
LR19980
Component Type
PCB Header
PCB Locator
No
Shrouded
Fully
Material - Plating Termination
Tin
Flammability
94V-0
Lock to Mating Part
Yes
First Mate / Last Break
No
Temperature Range - Operating
-55° to +105°C
Glow-Wire Capable
No
Pitch - Mating Interface
2.50mm
Polarized to Mating Part
Yes
Breakaway
No
Circuits (Loaded)
9
Durability (mating cycles max)
30

Description

Board Connector, 9 Contact(S), 1 Row(S), Male, Straight, 0.098 Inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle
