  11. Board Connector, Female, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle
This item is Discontinued.

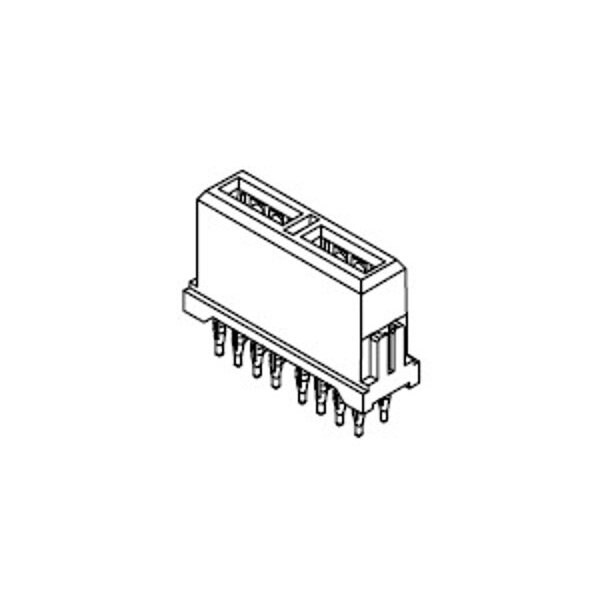

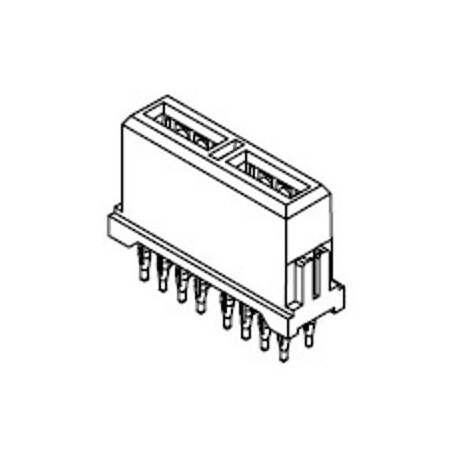

Molex Board Connector, Female, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle 755455000

Board Connector, Female, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle (Discontinued)

  • Mfr # 755455000
  • Zoro # G005891853
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
755455000
Zoro #
G005891853
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
4.72mm
PCB Thickness - Recommended
3.18mm

Details

Max. Temp.
230°C
Max. Voltage
450V
Application
Board-to-Board, Power
Series
75545
Standards
CSA Certified; UL E29179
Hole Center to Center
3.33 mm
Features
Surface Mount Compatible
Terminal Type
Through Hole - Compliant Pin
Material
High Temperature Thermoplastic
Color
Black
Number of Rows
2
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Current Rating
40 A
Number of Contacts
2
Flammability Rating
UL 94V-0
UL
E29179
Material - Resin
High Temperature Thermoplastic
Glow-Wire Capable
No
Max-Duration
20
Flammability
94V-0
Material - Plating Termination
Tin
Guide to Mating Part
No
Max-Cycle
1
Material - Metal
High Performance Alloy (HPA)
Orientation
Vertical
Circuits (Loaded)
2
Lock to Mating Part
No
Current - Maximum per Contact
40.0A
PCB Locator
No
Pitch - Mating Interface
3.33mm
Polarized to Mating Part
No
Durability (mating cycles max)
250
Max-Temp
230
Material - Plating Mating
Gold
Keying to Mating Part
None
Temperature Range - Operating
-40° to +105°C
Polarized to PCB
No
Grounding to PCB
No
CSA
LR19980
Product Name
EXTreme PowerMass
Stackable
No
PCB Retention
None
Component Type
PCB Receptacle
