  11. Board Connector, Male, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle
This item is Discontinued.

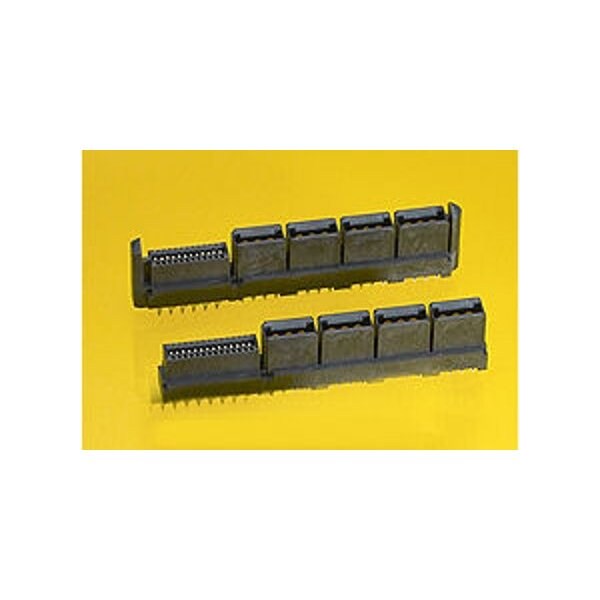

Molex Board Connector, Male, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle 461141016

Board Connector, Male, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle (Discontinued)

  • Mfr # 461141016
  • Zoro # G205892476
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
461141016
Zoro #
G205892476
UPC #
800756886282
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm

Details

Item
Power Connector
Max. Temp.
105°C
Max. Voltage
250V AC/DC
Application
Board-to-Board, Power
Series
46114
Standards
CSA Certified; UL E29179
Features
Surface Mount Compatible
Hole Center to Center
1.27 mm, 12 mm (Mating Interface); 1.27 mm, 2.5 mm (Termination Interface)
Material
High Temperature Thermoplastic
Color
Black
Sub-Category
PCB Receptacles
Terminal Type
Through Hole - Compliant Pin
Current Rating
30 A
Flammability Rating
UL 94V-0
Number of Contacts
26
Number of Rows
2
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Material - Plating Mating
Gold
CSA
LR19880
PCB Locator
No
Circuits (Loaded)
26
Keying to Mating Part
None
Grounding to PCB
No
Product Name
EXTreme LPHPower
Material - Metal
High Performance Alloy (HPA)
(p)ower-(s)ignal Configuration
10p - 16s
PCB Retention
None
Glow-Wire Capable
No
Guide to Mating Part
Yes
Current - Maximum per Contact
30.0A
UL
E29179
Stackable
No
Temperature Range - Operating
-40° to +105°C
Plating min - Mating
0.762µm
Lock to Mating Part
None
Material - Resin
High Temperature Thermoplastic
Voltage - Maximum
250V AC (RMS)/DC
Flammability
94V-0
Durability (mating cycles max)
250
Pitch - Mating Interface
1.27mm, 12.00mm
Polarized to PCB
Yes
Orientation
Vertical
Polarized to Mating Part
Yes
Material - Plating Termination
Tin
Component Type
PCB Receptacle
