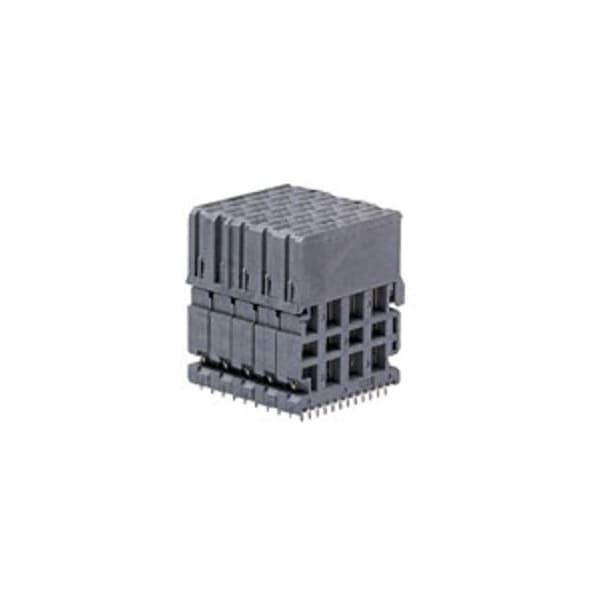

Board Stacking Connector, 120 Contact(S), 12 Row(S), Female, Straight, 0.075 Inch Pitch, Press Fit
Mfr # 1703901020
Zoro # G605912255
product price:Â $28.79
/ea
Sold in multiples of 3 for $86.37
Key Features
Max. Temp.
85°C
Max. Voltage
30V AC/DC
Material
High Temperature Thermoplastic
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
1.35 mm; 1.9 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1703901020
- Zoro #
- G605912255
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Contact Plating Thickness
- 0.762 µm
Details
- Max. Temp.
- 85°C
- Max. Voltage
- 30V AC/DC
- Material
- High Temperature Thermoplastic
- Terminal Type
- Through Hole - Compliant Pin
- Hole Center to Center
- 1.35 mm; 1.9 mm
- Color
- Gray
- Current Rating
- 0.75 A
- Number of Contacts
- 120
- Contact Finish
- Gold Plated
- Terminal Finish
- Matte Tin Plated
- Number of Rows
- 12
Description
Board Stacking Connector, 120 Contact(S), 12 Row(S), Female, Straight, 0.075 Inch Pitch, Press Fit Terminal, Locking, Gray Insulator, Receptacle
