  11. Card Edge Connector, 200 Contact(S), 2 Row(S), Female, 22.5 Degree, 0.024 Inch Pitch, Surface Mount

This item is Discontinued.

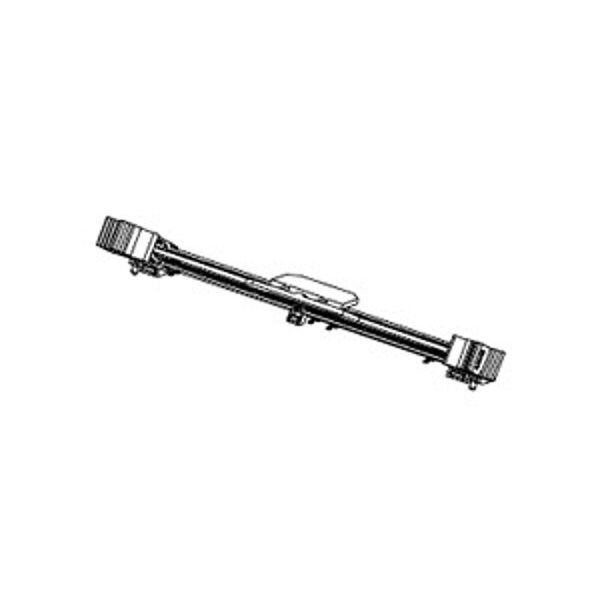

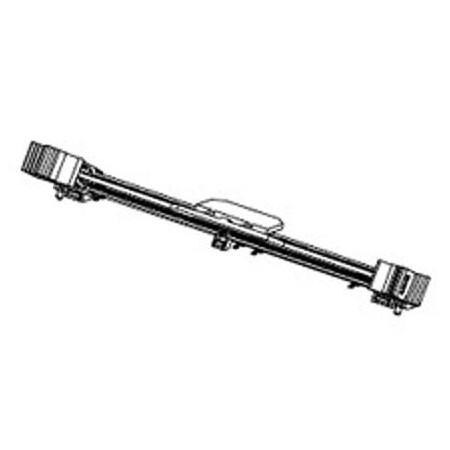

Molex Card Edge Connector, 200 Contact(S), 2 Row(S), Female, 22.5 Degree, 0.024 Inch Pitch, Surface Mount 877830202

Card Edge Connector, 200 Contact(S), 2 Row(S), Female, 22.5 Degree, 0.024 Inch Pitch, Surface Mount (Discontinued)

  • Mfr # 877830202
  • Zoro # G605982319
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
877830202
Zoro #
G605982319
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.762 µm

Details

Max. Temp.
260°C
Max. Voltage
30V
Series
87783
Standards
CSA Certified; UL E29179
Terminal Type
Surface Mount
Color
Black
Material
High Temperature Thermoplastic
Hole Center to Center
0.6 mm
Current Rating
1 A
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Number of Contacts
200
Contact Finish
Gold Plated
Circuits (Loaded)
200
Material - Resin
High Temperature Thermoplastic
PCB Retention
Yes
Voltage Key
2.5V
Product Name
MiniDIMM
Material - Plating Termination
Tin
Temperature Range - Operating
-55° to +85°C
UL
E29179
Material - Metal
Copper Alloy
Entry Angle
22.5° Angle
Max-Cycle
2
Durability (mating cycles max)
25
Material - Plating Mating
Gold
Max-Temp
260
Current - Maximum per Contact
1.0A
JEDEC Outline
MO-258
PCB Locator
Yes
CSA
LR19980
Component Type
Socket
Max-Duration
5
Pitch - Mating Interface
0.60mm
Latch Color
Natural (Off-White)
Keying to Mating Part
Yes
Plating min - Mating
0.762µm
Flammability
94V-0

Description

Card Edge Connector, 200 Contact(S), 2 Row(S), Female, 22.5 Degree, 0.024 Inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle
