  11. Card Edge Connector, 24+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Guide Pin, Black

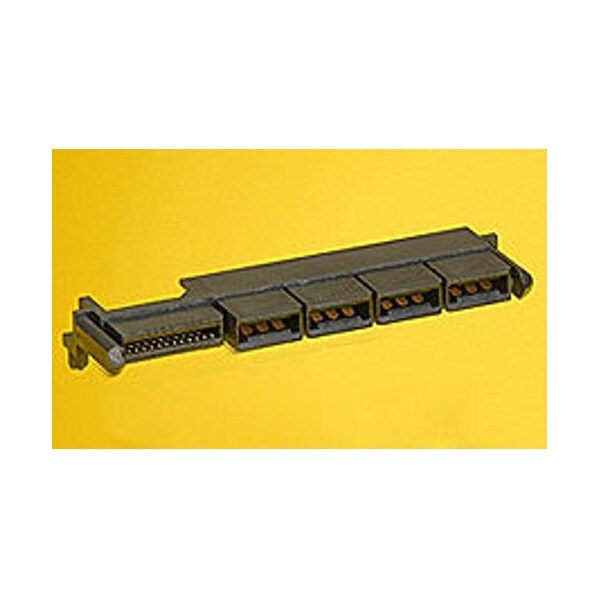

Molex Card Edge Connector, 24+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Guide Pin, Black 459848442 - main

Card Edge Connector, 24+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Guide Pin, Black

  • Mfr # 459848442

  • Zoro # G405951522

product price: $13.89
/ea
Sold in multiples of 5 for $69.45

Key Features

Max. Temp.
260°C
Max. Voltage
250V AC
Application
Board-to-Board, Power
Series
45984
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
459848442
Zoro #
G405951522
UPC #
822350775885
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
3.60mm
PCB Thickness - Recommended
2.36mm

Details

Item
Power Connector
Max. Temp.
260°C
Max. Voltage
250V AC
Application
Board-to-Board, Power
Series
45984
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Hole Center to Center
1.27 mm, 12 mm
Sub-Category
PCB Receptacles
Terminal Type
Through Hole
Color
Black
Features
Surface Mount Compatible
Contact Finish
Gold Plated
Number of Rows
2
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Number of Contacts
32
Current Rating
23 A
PCB Retention
Yes
Polarized to Mating Part
Yes
Max-Duration
20
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
23.0A
Durability (mating cycles max)
250
Circuits (Loaded)
32
Grounding to PCB
No
Plating min - Mating
0.762µm
Max-Cycle
3
Glow-Wire Capable
No
Max-Temp
260
Flammability
94V-0
Orientation
Right Angle
CSA
LR19980
Material - Plating Mating
Gold
Material - Plating Termination
Tin
UL
E29179
Product Name
EXTreme LPHPower
Stackable
No
Polarized to PCB
Yes
Material - Metal
High Performance Alloy (HPA)
Lock to Mating Part
No
Component Type
PCB Receptacle
Guide to Mating Part
Yes
Keying to Mating Part
Yes
PCB Locator
Yes
Pitch - Mating Interface
1.27mm, 12.00mm
Material - Resin
High Temperature Thermoplastic
(p)ower-(s)ignal Configuration
8p - 24s

Description

Card Edge Connector, 24+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Guide Pin, Black Insulator, Receptacle
