  11. Card Edge Connector, 36+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Guide Pin, Black

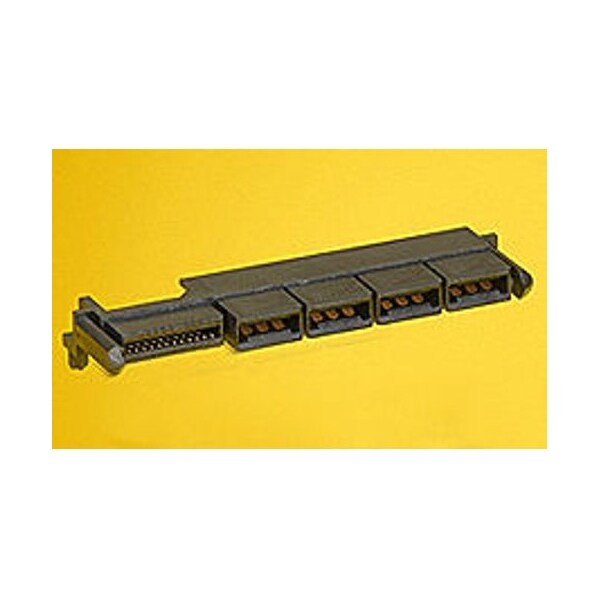

Molex Card Edge Connector, 36+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Guide Pin, Black 459848472 - main

Card Edge Connector, 36+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Guide Pin, Black

  • Mfr # 459848472

  • Zoro # G005951519

product price: $13.49
/ea
Sold in multiples of 6 for $80.94

Key Features

Max. Voltage
250V AC
Max. Temp.
260°C
Application
Board-to-Board, Power
Series
45984
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
459848472
Zoro #
G005951519
UPC #
822350775977
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
2.36mm
PC Tail Length
3.60mm

Details

Item
Power Connector
Max. Voltage
250V AC
Max. Temp.
260°C
Application
Board-to-Board, Power
Series
45984
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Sub-Category
PCB Receptacles
Color
Black
Terminal Type
Through Hole
Hole Center to Center
1.27 mm, 12 mm
Features
Surface Mount Compatible
Number of Contacts
44
Number of Rows
2
Flammability Rating
UL 94V-0
Current Rating
23 A
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
Material - Metal
High Performance Alloy (HPA)
Product Name
EXTreme LPHPower
Keying to Mating Part
Yes
Flammability
94V-0
UL
E29179
CSA
LR19980
Max-Duration
20
PCB Retention
Yes
Glow-Wire Capable
No
Stackable
No
(p)ower-(s)ignal Configuration
8p - 36s
Max-Cycle
3
PCB Locator
Yes
Plating min - Mating
0.762µm
Material - Plating Mating
Gold
Polarized to Mating Part
Yes
Component Type
PCB Receptacle
Guide to Mating Part
Yes
Circuits (Loaded)
44
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
1.27mm, 12.00mm
Current - Maximum per Contact
23.0A
Max-Temp
260
Material - Resin
High Temperature Thermoplastic
Grounding to PCB
No
Orientation
Right Angle
Material - Plating Termination
Tin
Durability (mating cycles max)
250
Polarized to PCB
Yes
Lock to Mating Part
No

Description

Card Edge Connector, 36+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Guide Pin, Black Insulator, Receptacle
