This item is Discontinued.

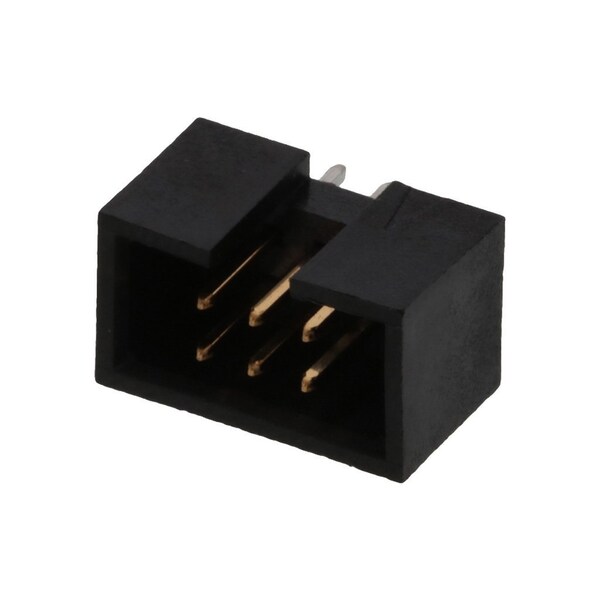

Molex CGrid Hdr WPgSlt 13AuLF 6Ckt 87834-0619

CGrid Hdr WPgSlt 13AuLF 6Ckt (Discontinued)

  • Mfr # 87834-0619
  • Zoro # G4044342
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87834-0619
Zoro #
G4044342
UPC #
822348364138
Country of Origin
Singapore

Dimensions

PC Tail Length
3.43mm

Details

Application
Signal, Wire-to-Board
Current - Maximum per Contact
2.5A
Material - Resin
Polyester
Plating min - Termination
1.905µm
Shrouded
Fully
Process Temperature max. C
235
Polarized to PCB
Yes
Temperature Range - Operating
-55° to +120°C
Series
87834
Max. Cycles at Max. Process Temperature
1
Material - Plating Termination
Tin
UL
E29179
Flammability
94V-0
Circuits (Loaded)
6
Polarized to Mating Part
Center Slot
Voltage - Maximum
250V DC
Number of Rows
2
Pitch - Mating Interface
2.54mm
Material - Plating Mating
Gold
Product Name
C-Grid
Duration at Max. Process Temperature (seconds)
3
Termination Interface: Style
Through Hole
Orientation
Vertical
Color - Resin
Black
Plating min - Mating
0.127µm
Pitch - Termination Interface
2.54mm
Circuits (maximum)
6
