  11. CGrid RA Shrd Hdr VerA 30SAu 26Ckt
This item is Discontinued.

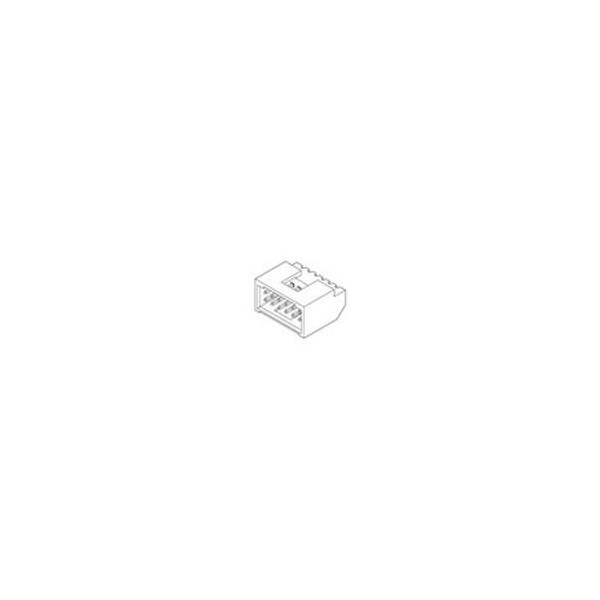

Molex CGrid RA Shrd Hdr VerA 30SAu 26Ckt 74162-0426

CGrid RA Shrd Hdr VerA 30SAu 26Ckt (Discontinued)

  • Mfr # 74162-0426
  • Zoro # G7804298
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
74162-0426
Zoro #
G7804298
UPC #
-
Country of Origin
Malaysia

Dimensions

PCB Thickness - Recommended
3.18mm

Details

Application
Board-to-Board, Signal
Pitch - Mating Interface
2.54mm
Number of Rows
2
Circuits (maximum)
26
Orientation
Right Angle
Circuits (Loaded)
26
Process Temperature max. C
260
Duration at Max. Process Temperature (seconds)
5
Lock to Mating Part
Yes
Plating min - Mating
0.762µm
Product Name
C-Grid
Current - Maximum per Contact
2.5A
Termination Interface: Style
Through Hole
Material - Resin
High Performance Thermoplastic
Voltage - Maximum
250V
Material - Plating Mating
Gold
Durability (mating cycles max)
50
Material - Plating Termination
Tin
Flammability
94V-0
Material - Metal
Phosphor Bronze
Color - Resin
Black
Pitch - Termination Interface
2.54mm
UL
E29179
Series
74162
Temperature Range - Operating
-40° to +105°C
Max. Cycles at Max. Process Temperature
1
