  11. CGrid RA Shrd Hdr wPg 15SAu 24Ckt

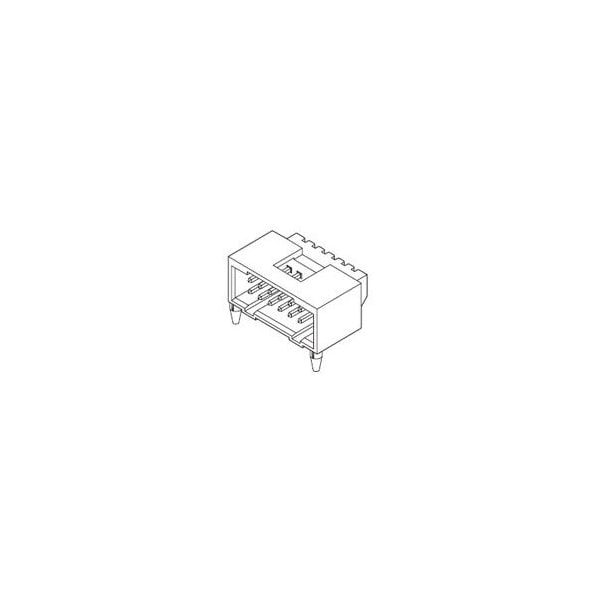

Molex CGrid RA Shrd Hdr wPg 15SAu 24Ckt 74164-0024 - main

CGrid RA Shrd Hdr wPg 15SAu 24Ckt

  • Mfr # 74164-0024

  • Zoro # G4046269

product price: $11.49
/ea
Sold in multiples of 15 for $172.35

Key Features

Application
Board-to-Board, Signal
Lock to Mating Part
Yes
Duration at Max. Process Temperature (seconds)
5
Circuits (maximum)
24
Product Name
C-Grid
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
74164-0024
Zoro #
G4046269
UPC #
883906878627
Country of Origin
Malaysia

Details

Application
Board-to-Board, Signal
Lock to Mating Part
Yes
Duration at Max. Process Temperature (seconds)
5
Circuits (maximum)
24
Product Name
C-Grid
Material - Plating Termination
Tin
Orientation
Right Angle
Series
74164
Material - Metal
Phosphor Bronze
Termination Interface: Style
Through Hole
Material - Resin
High Performance Thermoplastic
Current - Maximum per Contact
2.5A
Flammability
94V-0
PCB Locator
Yes
Pitch - Mating Interface
2.54mm
Max. Cycles at Max. Process Temperature
1
Voltage - Maximum
250V
UL
E29179
Pitch - Termination Interface
2.54mm
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
24
Material - Plating Mating
Gold
Color - Resin
Black
Plating min - Mating
0.381µm
Number of Rows
2
Durability (mating cycles max)
50
Process Temperature max. C
260
