This item is Discontinued.

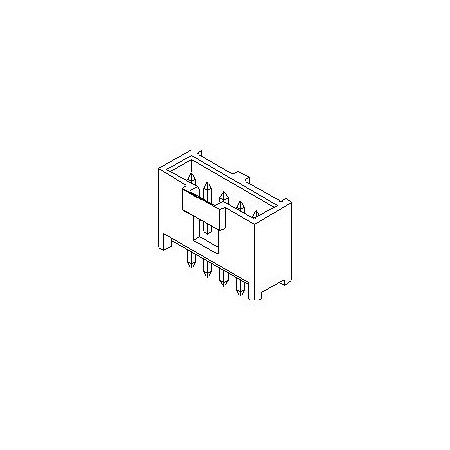

Molex CGrid Shrd Hdr SR Vt TnA 3Ckt 90136-1103

CGrid Shrd Hdr SR Vt TnA 3Ckt (Discontinued)

  • Mfr # 90136-1103
  • Zoro # G4030464
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
90136-1103
Zoro #
G4030464
UPC #
-
Country of Origin
Malaysia

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
2.90mm

Details

Flammability
94V-0
Circuits (maximum)
3
Color - Resin
Black
Material - Plating Mating
Tin
Plating min - Mating
3.048µm
Material - Resin
Polyester
Temperature Range - Operating
-55° to +125°C
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Current - Maximum per Contact
3.0A
Circuits (Loaded)
3
Termination Interface: Style
Through Hole
Max. Cycles at Max. Process Temperature
1
Orientation
Vertical
Shrouded
Fully
CSA
LR19980
Number of Rows
1
Material - Metal
Brass
Pitch - Termination Interface
2.54mm
UL
E29179
Pitch - Mating Interface
2.54mm
Process Temperature max. C
235
Duration at Max. Process Temperature (seconds)
3
Voltage - Maximum
350V AC/DC
Plating min - Termination
3.048µm
