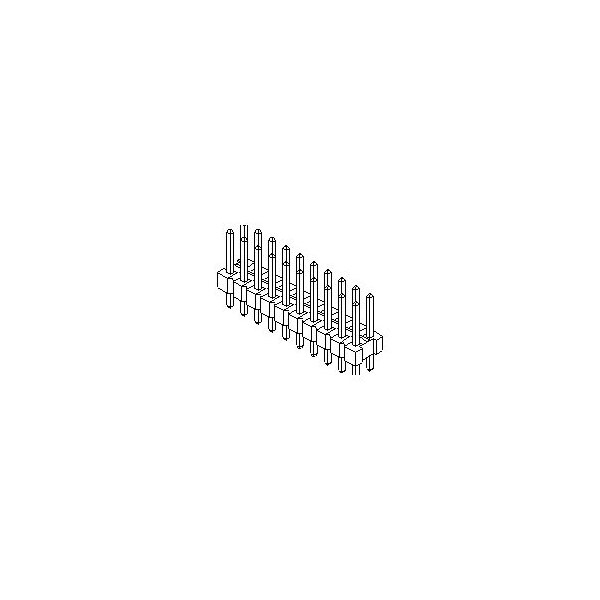

Molex CGrid VT Bkwy Hdr 15 SAu 8Ckt 240110 10-89-7082 - main

CGrid VT Bkwy Hdr 15 SAu 8Ckt 240110

  • Mfr # 10-89-7082

  • Zoro # G2747522

product price: $1.25
/ea
Sold in multiples of 150 for $187.50

Key Features

CSA
LR19980
PC Tail Length
2.79mm
Durability (mating cycles max)
50
Color - Resin
Black
Termination Interface: Style
Through Hole
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10-89-7082
Zoro #
G2747522
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
2.79mm
PCB Thickness - Recommended
1.60mm

Details

CSA
LR19980
Durability (mating cycles max)
50
Color - Resin
Black
Termination Interface: Style
Through Hole
Material - Resin
High Temperature Thermoplastic
Plating min - Mating
0.381µm
Material - Plating Mating
Gold
Orientation
Vertical
Flammability
94V-0
Current - Maximum per Contact
3.0A
Temperature Range - Operating
-40° to +105°C
Process Temperature max. C
260
Circuits (Loaded)
8
Plating min - Termination
2.032µm
Voltage - Maximum
250V
UL
E29179
Pitch - Mating Interface
2.54mm
Stackable
Yes
Material - Plating Termination
Tin
Circuits (maximum)
8
Breakaway
Yes
Number of Rows
2
Material - Metal
Copper Alloy
