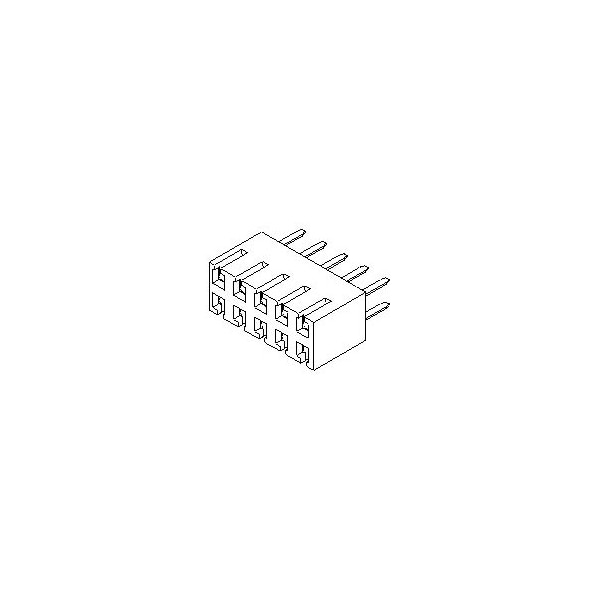

Molex CGrid VT Rcpt Tin 8Ckt 15-44-6808 - main

CGrid VT Rcpt Tin 8Ckt

  • Mfr # 15-44-6808

  • Zoro # G4030920

product price:  $8.89
/ea
Sold in multiples of 15 for $133.35

Key Features

Application
Board-to-Board, Signal
Orientation
Vertical
Plating min - Mating
3.810µm
Termination Interface: Style
Through Hole
Color - Resin
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
15-44-6808
Zoro #
G4030920
UPC #
800753782440
Country of Origin
Malaysia

Dimensions

PC Tail Length
3.05mm
PCB Thickness - Recommended
1.57mm

Details

Application
Board-to-Board, Signal
Orientation
Vertical
Plating min - Mating
3.810µm
Termination Interface: Style
Through Hole
Color - Resin
Black
Circuits (maximum)
8
Material - Metal
Phosphor Bronze
Number of Rows
2
Process Temperature max. C
260
Temperature Range - Operating
-40° to +105°C
Flammability
94V-0
Durability (mating cycles max)
25
Material - Plating Termination
Tin
UL
E29179
Product Name
C-Grid
Max. Cycles at Max. Process Temperature
3
Pitch - Mating Interface
2.54mm
Material - Resin
High Temperature Thermoplastic
Duration at Max. Process Temperature (seconds)
30
Material - Plating Mating
Tin
CSA
LR19980
Current - Maximum per Contact
2.5A
Series
71850
Voltage - Maximum
250V
Plating min - Termination
3.810µm
Circuits (Loaded)
8
