Shop MOLEX

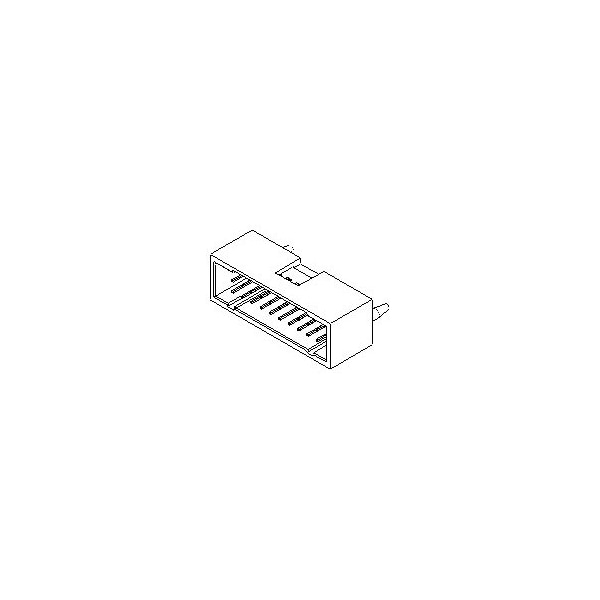

CGrid VT Shrd Hdr w/Pg 15 SAu 48Ckt

  • Mfr # 15-47-7648

  • Zoro # G7921819

product price:
$
8.15
/ea
Sold in multiples of 10 for $81.50

Key Features

Application
Signal, Wire-to-Board
Pitch - Termination Interface
2.54mm
Voltage - Maximum
250V
Polarized to PCB
Yes
Process Temperature max. C
245
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
15-47-7648
Zoro #
G7921819
UPC #
800754628266
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
2.40mm
PC Tail Length
3.30mm

Details

Application
Signal, Wire-to-Board
Pitch - Termination Interface
2.54mm
Voltage - Maximum
250V
Polarized to PCB
Yes
Process Temperature max. C
245
UL
E29179
Circuits (maximum)
48
Orientation
Vertical
Current - Maximum per Contact
2.5A
Flammability
94V-0
Pitch - Mating Interface
2.54mm
Max. Cycles at Max. Process Temperature
1
Temperature Range - Operating
-55° to +105°C
Series
70568
Plating min - Mating
0.381µm
Material - Plating Mating
Gold
Material - Metal
Brass, Phosphor Bronze
Circuits (Loaded)
48
Product Name
C-Grid
PCB Retention
Yes
Material - Resin
High Temperature Thermoplastic
Lock to Mating Part
Yes
Polarized to Mating Part
Yes
Number of Rows
2
Color - Resin
Black
CSA
LR19980
Termination Interface: Style
Through Hole
Duration at Max. Process Temperature (seconds)
5
Shrouded
Fully
