This item is Discontinued.

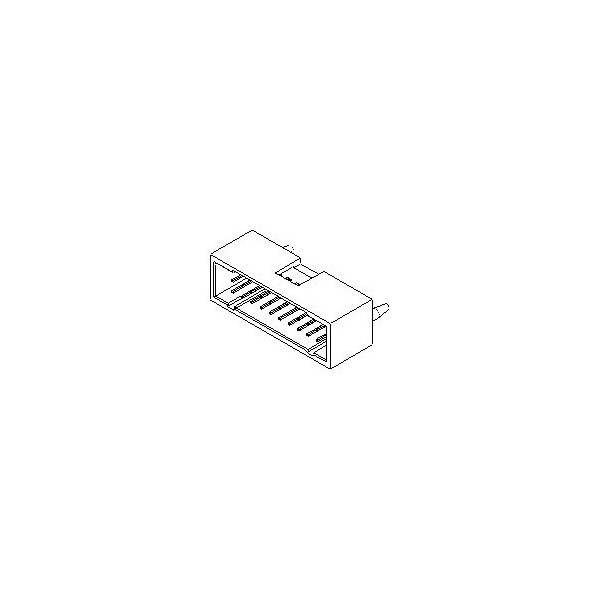

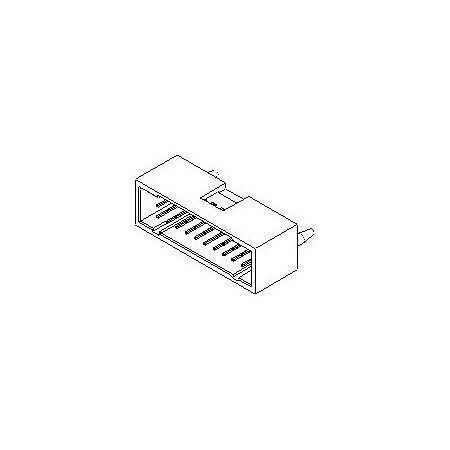

Molex CGrid VT Shrd Hdr wPg 15SAu 14Ckt 15-47-7614

CGrid VT Shrd Hdr wPg 15SAu 14Ckt (Discontinued)

  • Mfr # 15-47-7614
  • Zoro # G7920443
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15-47-7614
Zoro #
G7920443
UPC #
800755021110
Country of Origin
Mexico

Dimensions

PC Tail Length
3.30mm
PCB Thickness - Recommended
2.40mm

Details

Application
Signal, Wire-to-Board
Plating min - Mating
0.381µm
Max. Cycles at Max. Process Temperature
1
Polarized to Mating Part
Yes
Orientation
Vertical
Termination Interface: Style
Through Hole
Number of Rows
2
PCB Retention
Yes
Material - Plating Mating
Gold
Polarized to PCB
Yes
Process Temperature max. C
245
Flammability
94V-0
Product Name
C-Grid
Current - Maximum per Contact
2.5A
Voltage - Maximum
250V
Duration at Max. Process Temperature (seconds)
5
Material - Resin
High Temperature Thermoplastic
Material - Metal
Brass, Phosphor Bronze
Pitch - Termination Interface
2.54mm
Circuits (Loaded)
14
CSA
LR19980
Shrouded
Fully
Series
70568
Temperature Range - Operating
-55° to +105°C
Pitch - Mating Interface
2.54mm
Color - Resin
Black
UL
E29179
Lock to Mating Part
Yes
Circuits (maximum)
14
