  11. CGrid VT Shrd Hdr wPg 15SAu 40Ckt

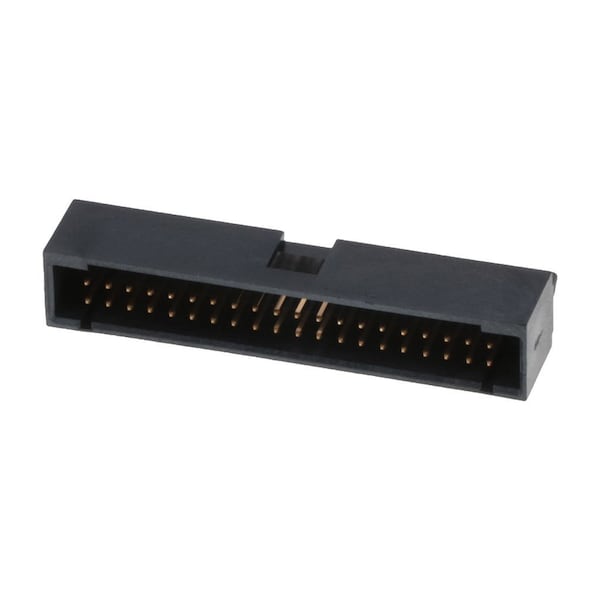

Molex CGrid VT Shrd Hdr wPg 15SAu 40Ckt 15-47-7640 - main

CGrid VT Shrd Hdr wPg 15SAu 40Ckt

  • Mfr # 15-47-7640

  • Zoro # G7920638

product price: $7.49
/ea
Sold in multiples of 15 for $112.35

Key Features

Application
Signal, Wire-to-Board
Series
70568
Polarized to Mating Part
Yes
Pitch - Termination Interface
2.54mm
Pitch - Mating Interface
2.54mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15-47-7640
Zoro #
G7920638
UPC #
800754628167
Country of Origin
Mexico

Dimensions

PC Tail Length
3.30mm
PCB Thickness - Recommended
2.40mm

Details

Application
Signal, Wire-to-Board
Series
70568
Polarized to Mating Part
Yes
Pitch - Termination Interface
2.54mm
Pitch - Mating Interface
2.54mm
Circuits (maximum)
40
CSA
LR19980
Lock to Mating Part
Yes
Flammability
94V-0
Plating min - Mating
0.381µm
Polarized to PCB
Yes
Voltage - Maximum
250V
Shrouded
Fully
PCB Retention
Yes
Process Temperature max. C
245
Current - Maximum per Contact
2.5A
Material - Plating Termination
Tin
Plating min - Termination
1.905µm
Product Name
C-Grid
Orientation
Vertical
Color - Resin
Black
Material - Resin
High Temperature Thermoplastic
Duration at Max. Process Temperature (seconds)
5
Termination Interface: Style
Through Hole
UL
E29179
Material - Metal
Brass, Phosphor Bronze
Material - Plating Mating
Gold
Temperature Range - Operating
-55° to +105°C
Max. Cycles at Max. Process Temperature
1
Number of Rows
2
Circuits (Loaded)
40
