  11. CGrid VT Shrd Hdr wPg 15SAu 50Ckt

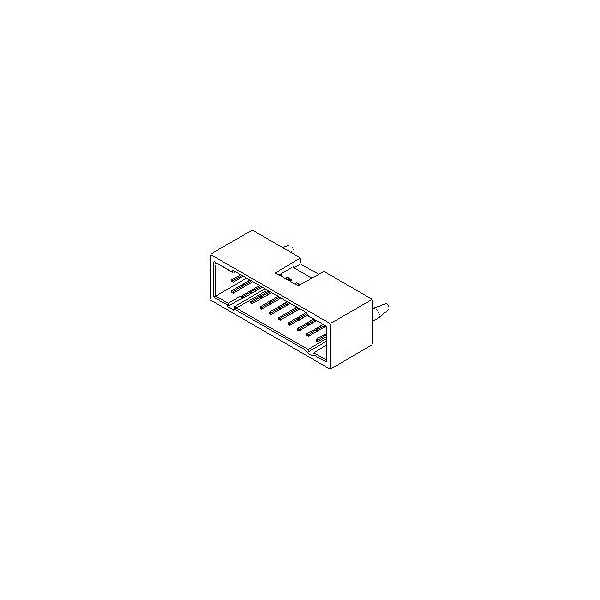

Molex CGrid VT Shrd Hdr wPg 15SAu 50Ckt 15-47-7650 - main

CGrid VT Shrd Hdr wPg 15SAu 50Ckt

  • Mfr # 15-47-7650

  • Zoro # G7921749

product price: $5.75
/ea
Sold in multiples of 15 for $86.25

Key Features

Application
Signal, Wire-to-Board
Pitch - Termination Interface
2.54mm
Orientation
Vertical
Material - Metal
Brass, Phosphor Bronze
Polarized to Mating Part
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15-47-7650
Zoro #
G7921749
UPC #
800755021196
Country of Origin
Mexico

Dimensions

PC Tail Length
3.30mm
PCB Thickness - Recommended
2.40mm

Details

Application
Signal, Wire-to-Board
Pitch - Termination Interface
2.54mm
Orientation
Vertical
Material - Metal
Brass, Phosphor Bronze
Polarized to Mating Part
Yes
UL
E29179
Plating min - Mating
0.381µm
Material - Plating Mating
Gold
Termination Interface: Style
Through Hole
PCB Retention
Yes
Circuits (Loaded)
50
Lock to Mating Part
Yes
Shrouded
Fully
Temperature Range - Operating
-55° to +105°C
Material - Resin
High Temperature Thermoplastic
Product Name
C-Grid
Duration at Max. Process Temperature (seconds)
5
Pitch - Mating Interface
2.54mm
Polarized to PCB
Yes
Number of Rows
2
Circuits (maximum)
50
Process Temperature max. C
245
Current - Maximum per Contact
2.5A
Series
70568
CSA
LR19980
Color - Resin
Black
Flammability
94V-0
Max. Cycles at Max. Process Temperature
1
Voltage - Maximum
250V
