  9. Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock

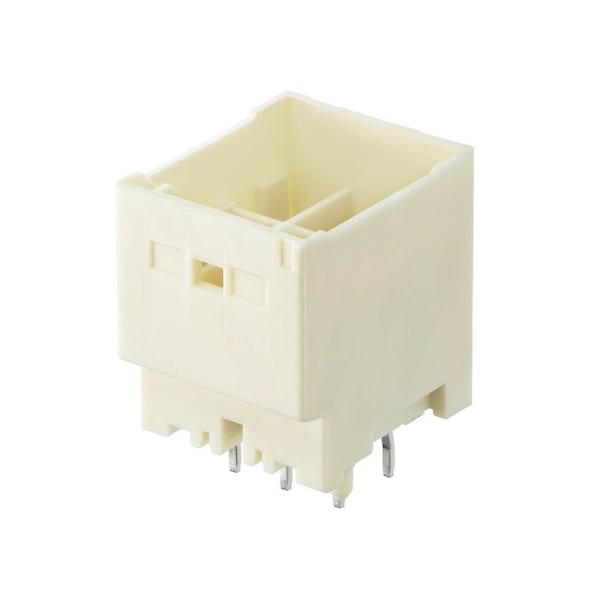

Molex Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock 2122100020 - main

Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock

  • Mfr # 2122100020

  • Zoro # G205910286

product price: $0.58
/ea
Sold in multiples of 167 for $96.86

Key Features

Color
Natural
Number of Rows
2
Series
212210
Max. Voltage
500V AC/DC
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2122100020
Zoro #
G205910286
UPC #
-
Country of Origin
India

Dimensions

PC Tail Length
3.35mm
PCB Thickness - Recommended
1.60mm

Details

Color
Natural
Number of Rows
2
Series
212210
Max. Voltage
500V AC/DC
Application
Power, Wire-to-Board
Hole Center to Center
3.3 mm
Material
Polyamide
Features
Glow-Wire Capable
Max. Temp.
105°C
Terminal Type
Through Hole
Standards
UL E29179
Current Rating
8.5 A
Terminal Finish
Matte Tin Plated
Contact Finish
Matte Tin Plated
Number of Contacts
2
Flammability Rating
UL 94V-0
Guide to Mating Part
No
Polarized to PCB
Yes
Circuits (Loaded)
2
Breakaway
No
Material - Resin
Polyamide
Orientation
Vertical
PCB Retention
Yes
Material - Plating Termination
Matte Tin
Polarized to Mating Part
Yes
Glow-Wire Capable
Yes
Temperature Range - Operating
-40° to +105°C
Product Name
CP-3.3
Component Type
PCB Header
Material - Metal
Copper Alloy
Pitch - Mating Interface
3.30mm
First Mate / Last Break
No
UL
E29179
Keying to Mating Part
Yes
Material - Plating Mating
Matte Tin
Flammability
94V-0
Lock to Mating Part
Yes
PCB Locator
Yes
Current - Maximum per Contact
8.5A
