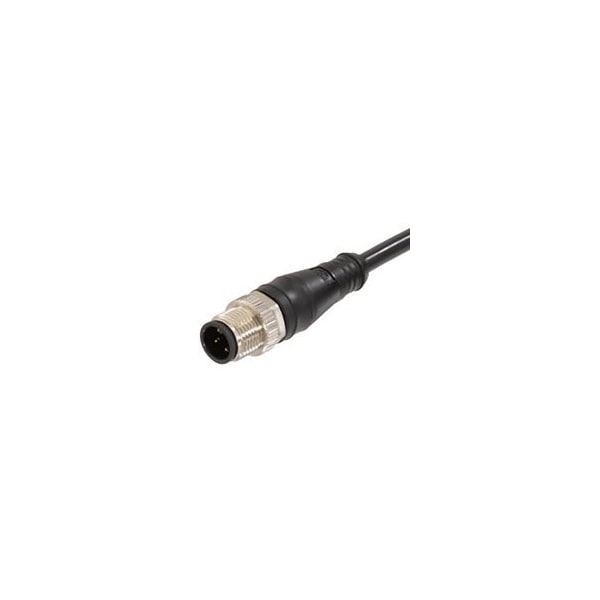

CSE M12 4P AC MA STR WSOR 1M SE UNSH BK
Mfr # 1200652275
Zoro # G2762572
product price:Â
$
28.19
/ea
Sold in multiples of 3 for $84.57
Key Features
Material - Cable Jacket
TPU
Material - Coupling Nut
Nickel-plated Brass
Cable Diameter
5.10mm (.201")
Material - Plating Mating
Gold
Coupling Style
Knurled Hexnut, Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1200652275
- Zoro #
- G2762572
- UPC #
- -
- Country of Origin
- Italy
- Material - Cable Jacket
- TPU
- Material - Coupling Nut
- Nickel-plated Brass
- Material - Plating Mating
- Gold
- Coupling Style
- Knurled Hexnut, Threaded
- Poles
- 4
- Wire/Cable Type
- WSOR
- Material - Connector Body
- TPU
- Temperature Range - Operating
- -25°C to +85°C
- Keyway
- Single
- Current - Maximum per Contact
- 4.0A
- Color - Cable Jacket
- Black
- Orientation
- Straight to Pigtail
- Gender
- Male-Pigtail
- UL
- E152210
- Voltage - Maximum
- 250V
- Series
- 120065
- Material - Contact
- Brass
- Product Name
- Micro-Change (M12)
- Connector End A
- Micro-Change (M12)
- Type
- Single Ended
- LED Indicator
- No
- IP Rating
- IP67
- Connector End B
- Pigtail
