Shop MOLEX

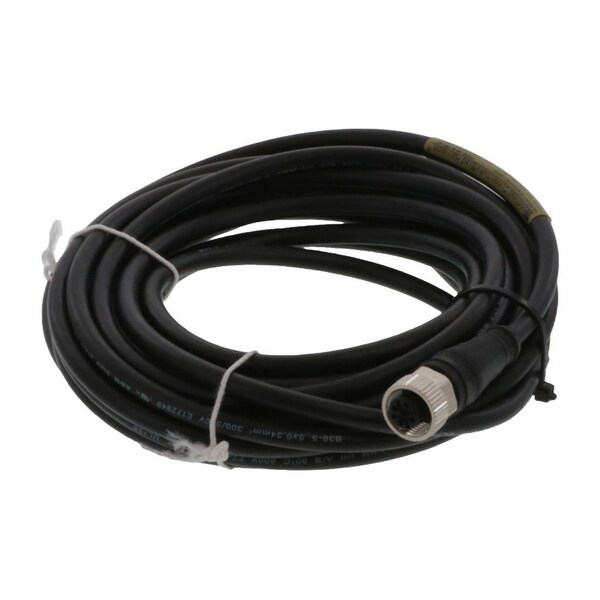

CSE M12 5P AC FE STR WSOR 5M SE UNSH BK

  • Mfr # 1200659520

  • Zoro # G2760378

product price:
$
54.49
/ea
Sold in multiples of 2 for $108.98

Key Features

Wire Size AWG
22
Temperature Range - Operating
-25°C to +85°C
Voltage - Maximum
60V
Orientation
Straight to Pigtail
Material - Plating Mating
Gold
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200659520
Zoro #
G2760378
UPC #
-
Country of Origin
Poland

Dimensions

Wire Size AWG
22
Cable Diameter
5.50mm (.216")
Cable Length
5.0m (16.40')

Details

Temperature Range - Operating
-25°C to +85°C
Voltage - Maximum
60V
Orientation
Straight to Pigtail
Material - Plating Mating
Gold
Gender
Female-Pigtail
Color - Cable Jacket
Black
Wire/Cable Type
WSOR
Current - Maximum per Contact
4.0A
Keyway
Single
UL
E152210
Material - Connector Body
TPU
Material - Cable Jacket
TPU
Poles
5
Material - Coupling Nut
Nickel-plated Brass
Coupling Style
Knurled Hexnut, Threaded
Series
120065
Connector End A
Micro-Change (M12)
IP Rating
IP67
Material - Contact
Brass
Connector End B
Pigtail
Material - O-Ring
FPM
Product Name
Micro-Change (M12)
Type
Single Ended
LED Indicator
No
