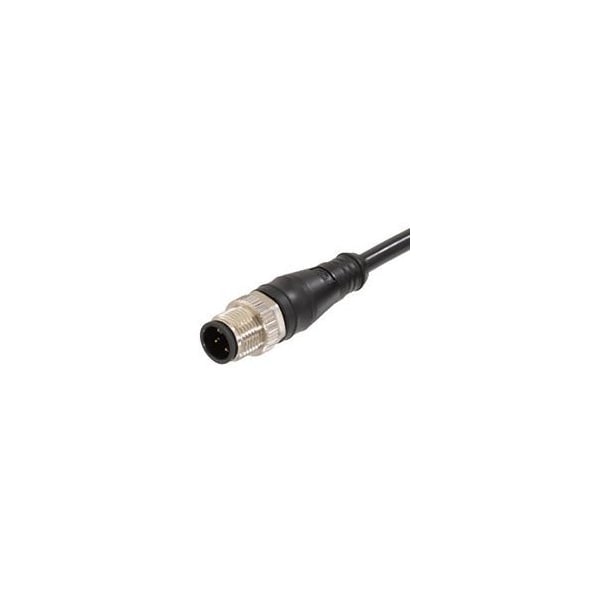

Molex CSE M12 8P AC MA STR WSOR 1M SE SHLD BK 1200698625 - main

CSE M12 8P AC MA STR WSOR 1M SE SHLD BK

  • Mfr # 1200698625

  • Zoro # G2762773

product price:  $63.25
/ea
Sold in multiples of 2 for $126.50

Key Features

Cable Diameter
6.90mm (.272")
Wire/Cable Type
WSOR
Keyway
Single
Orientation
Straight to Pigtail
Voltage - Maximum
30V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1200698625
Zoro #
G2762773
UPC #
-
Country of Origin
Italy

Dimensions

Cable Diameter
6.90mm (.272")
Wire Size AWG
24
Cable Length
1.0m (3.28')

Details

Wire/Cable Type
WSOR
Keyway
Single
Orientation
Straight to Pigtail
Voltage - Maximum
30V
Material - Cable Jacket
TPU
Material - Connector Body
TPU
Gender
Male-Pigtail
Material - Plating Mating
Gold
Color - Cable Jacket
Black
Coupling Style
Knurled Hexnut, Threaded
Current - Maximum per Contact
2.0A
Poles
8
UL
E152210
Material - Coupling Nut
Nickel-plated Brass
Temperature Range - Operating
-25°C to +85°C
Material - Contact
Brass
IP Rating
IP67
Type
Single Ended
Connector End B
Pigtail
LED Indicator
No
Product Name
Micro-Change (M12)
Connector End A
Micro-Change (M12)
Series
120069
