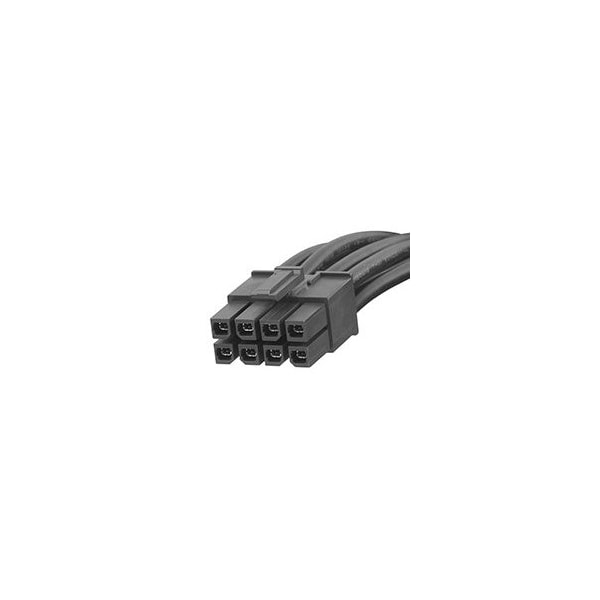

Dc Power Cords Mega-Fit Cable Assy 8Ckt Dr 1Mm Blk

  • Mfr # 451360810

  • Zoro # G205982160


product price: $19.15
/ea
Sold in multiples of 5 for $95.75

Key Features

Max. Amps
23 A
Number of Conductors
8
Cord Length
1.0m
Wire Size
12 AWG
Voltage
600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
451360810
Zoro #
G205982160
UPC #
-
Country of Origin
India

Dimensions

Cord Length
1.0m
Wire Size
12 AWG
Wire Insulation Diameter
3.90mm
Wire Size (AWG)
12

Details

Max. Amps
23 A
Number of Conductors
8
Voltage
600V
Connection Type
Female to Female
Jacket Material
Nylon
Standards
UL 1015
Material
Copper Alloy
Color
Black
Type
Discrete Wire Assembly, High-Power Assembly
Application
Power, Wire-to-Board
Material - Plating Termination
Matte Tin
Product Name
Mega-Fit
Lock to Mating Part
Yes
Pitch - Mating Interface
5.70mm
Assembly Configuration
Dual Ended Connectors
Single Ended
No
Material - Plating Mating
Matte Tin
Termination Interface Style
Crimp or Compression
Gender
Female-Female
Connector to Connector
Mega-Fit-to-Mega-Fit
Series
45136
Circuits (Loaded)
8
Plating min - Mating
1.524µm
Number of Rows
2
Current - Maximum per Contact
23.0A
Overmolded
No
